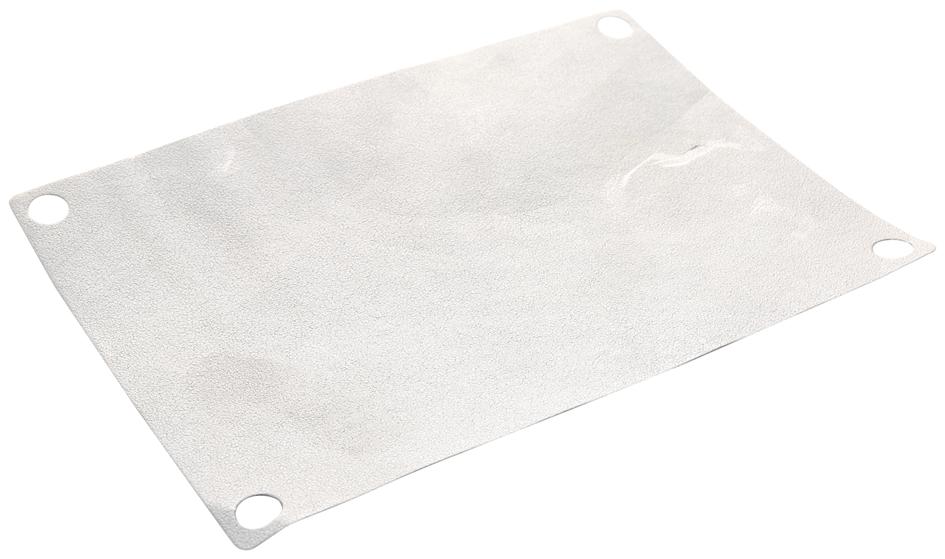

Panasonic EYGS0309ZLAK Graphite Sheet
GraphiteTIM (Compressible Type) is a high-performance graphite sheet designed as an efficient thermal interface material for electronic components. It features excellent heat resistance, reliability, low thermal resistance of 10.2 K-cm2/W at 600 kPa, and thermal conductivity between 200 to 400 W/m-K in the X-Y direction and 28 W/m-K in the Z direction. Its high compressibility of 40% or more effectively reduces thermal resistance, accommodating gaps, warpage, and distortion. Suitable for power modules, automotive LED, inverters, servers, and medical equipment, it offers long-term stability from -55°C to 400°C and RoHS compliance for safe, eco-friendly use.
Panasonic EYGS0309ZLAK Graphite Sheet Specifications:
- Thermal resistance: 10.2 K-cm2/W at 600 kPa
- Thermal conductivity: 200-400 W/m-K in X-Y, 28 W/m-K in Z
- Compressibility: 40% or more at 600 kPa
- Temperature range: -55°C to +400°C
- Flame resistance: UL-94V-0 equivalent
- Material: Graphite sheet
- Dimensions: 90mm x 90mm, 90mm x 180mm, 180mm x 180mm
- Thickness options: 200 μm, 250 μm, 350 μm
- RoHS compliant
Buy the Panasonic PGS – Reliable GraphiteTIM for Industrial Applications
Enhance your electronic thermal management with Panasonic GraphiteTIM. This highly compressible graphite sheet reduces thermal resistance, ensures long-term reliability, and operates efficiently from -55°C to 400°C. Ideal for power modules, automotive applications, inverters, servers, and medical devices, it offers straightforward installation without phase change issues or grease. Elevate your cooling solutions today by purchasing online and benefit from quick delivery, RoHS compliance, and superior performance in demanding environments.
Buy Panasonic PGS now and experience unmatched reliability and improved thermal management for electronic components.
