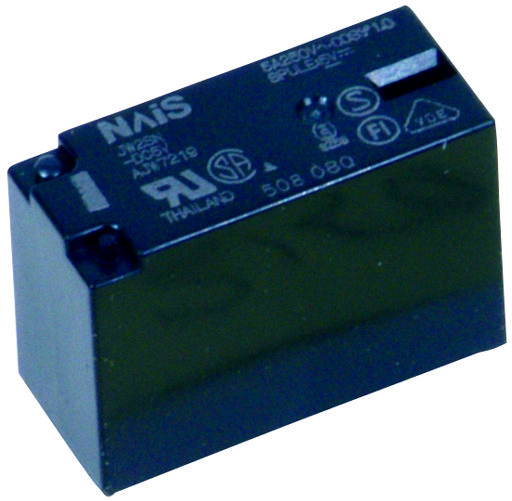

Panasonic JW2SNDC24V General-Purpose PCB Relay
This is a general-purpose PCB mount relay with a 24 V DC coil, featuring a DPDT contact configuration capable of handling up to 5 Amps. Designed for reliable switching, it offers sealed construction, high dielectric withstand voltage of 10,000 V surge in 1s, and DIN terminal wiring for easy installation. Suitable for industrial, home appliances, and office equipment applications, this relay complies with RoHS and various certification standards, ensuring environmental safety and high performance in various operational environments.
Panasonic JW2SNDC24V General-Purpose PCB Relay Specifications:
- Contact Arrangement: Double Pole Double Throw (DPDT)
- Coil Voltage: 24 V DC
- Maximum Contact Current: 5A
- Contact Resistance: Max. 100 mΩ
- Initial Insulation Resistance: Min. 100 MQ at 500 V DC
- Dielectric Withstanding Voltage: 10,000 V surge in 1s
- Switching Power: 2,500 VA, 300 W
- Operating Time: Max. 15 ms
- Release Time: Max. 5 ms
- Operating Temperature: -40°C to +85°C
- Vibration Resistance: 10 to 55 Hz at double amplitude of 1.6 mm
- Shock Resistance: 98 m/s² functional, 980 m/s² destructive
- Ambient Humidity: 5 to 85% RH
- Impacts: CE, UL/CSA, VDE, SEMKO, FIMKO, SEV approved
- Dimensions: PCB pattern compatible with copper-side view, with general tolerance of +0.1 mm
Buy the Buy Panasonic General-Purpose PCB Relay Product JW2SNDC24V Online
Purchase the Panasonic JW2SNDC24V relay online today for efficient, dependable performance in industrial, home, and office applications. This high-quality PLC relay offers a 24 V DC coil, double pole double throw contacts, and a maximum current capacity of 5A. It’s sealed for durability, complies with RoHS standards, and features DIN terminal wiring for easy installation. Ideal for reliable switching, this relay supports a wide temperature range, vibration, and shock resistance, ensuring excellent performance in various operational environments. Order now for quick delivery and peace of mind in your projects.
Get Panasonic JW2SNDC24V today—built for reliable switching performance and long-lasting durability in industrial and home automation.
Frequently Asked Questions
Where can I buy Panasonic JW2SNDC24V?
You can click on the BUY or RFQ button to purchase JW2SNDC24V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part JW2SNDC24V?
You can download the JW2SNDC24V datasheet or visit the Panasonic website for support.
Who is the manufacturer of JW2SNDC24V?
Panasonic
