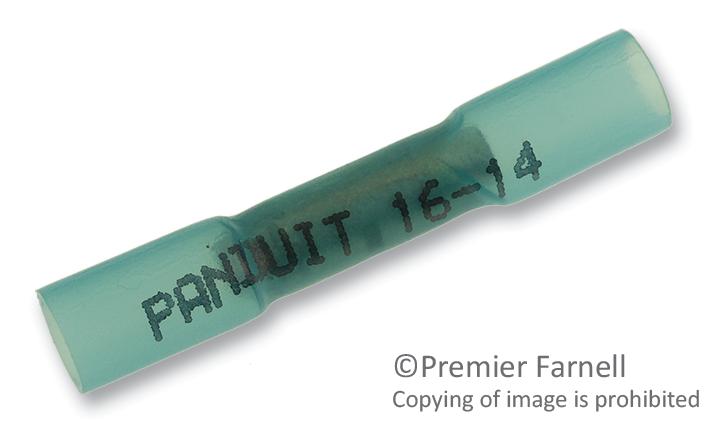

Panduit BSH14Q Heat Shrink Butt Splice
The PANDUIT BSH14-Q heat shrink butt splice provides a secure and insulated connection for two solid or stranded wires. After crimping, the heat shrink sleeve is applied with a heat gun, creating a moisture-resistant seal. This splice is suitable for a range of industrial applications where reliable wire connections are essential, particularly in environments with limited space. It is UL and CSA rated up to 600V and offers a low-profile design for ease of use.
Panduit BSH14Q Heat Shrink Butt Splice Specifications:
- Wire Range: 16 – 14 AWG
- Color Code: Blue
- Max Insulation: 0.190 In.
- Figure Dimensions: 1.45 In.
- Wire Strip Length: 5/16 In.
- Recommended Installation Tool: CT-310
- Std. Pkg. Qty.: 25
- Std. Ctn. Qty.: 125
- UL CSA Rating: Up to 600 V per UL 486C
Buy the BSH14-Q PANDUIT Heat Shrink Butt Splice | myMectronic
Purchase the PANDUIT BSH14-Q Heat Shrink Butt Splice securely online for reliable wire connections.
Buy Now
Frequently Asked Questions
Where can I buy Panduit BSH14Q?
You can click on the BUY or RFQ button to purchase BSH14Q from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part BSH14Q?
You can download the BSH14Q datasheet or visit the Panduit website for support.
Who is the manufacturer of BSH14Q?
Panduit
