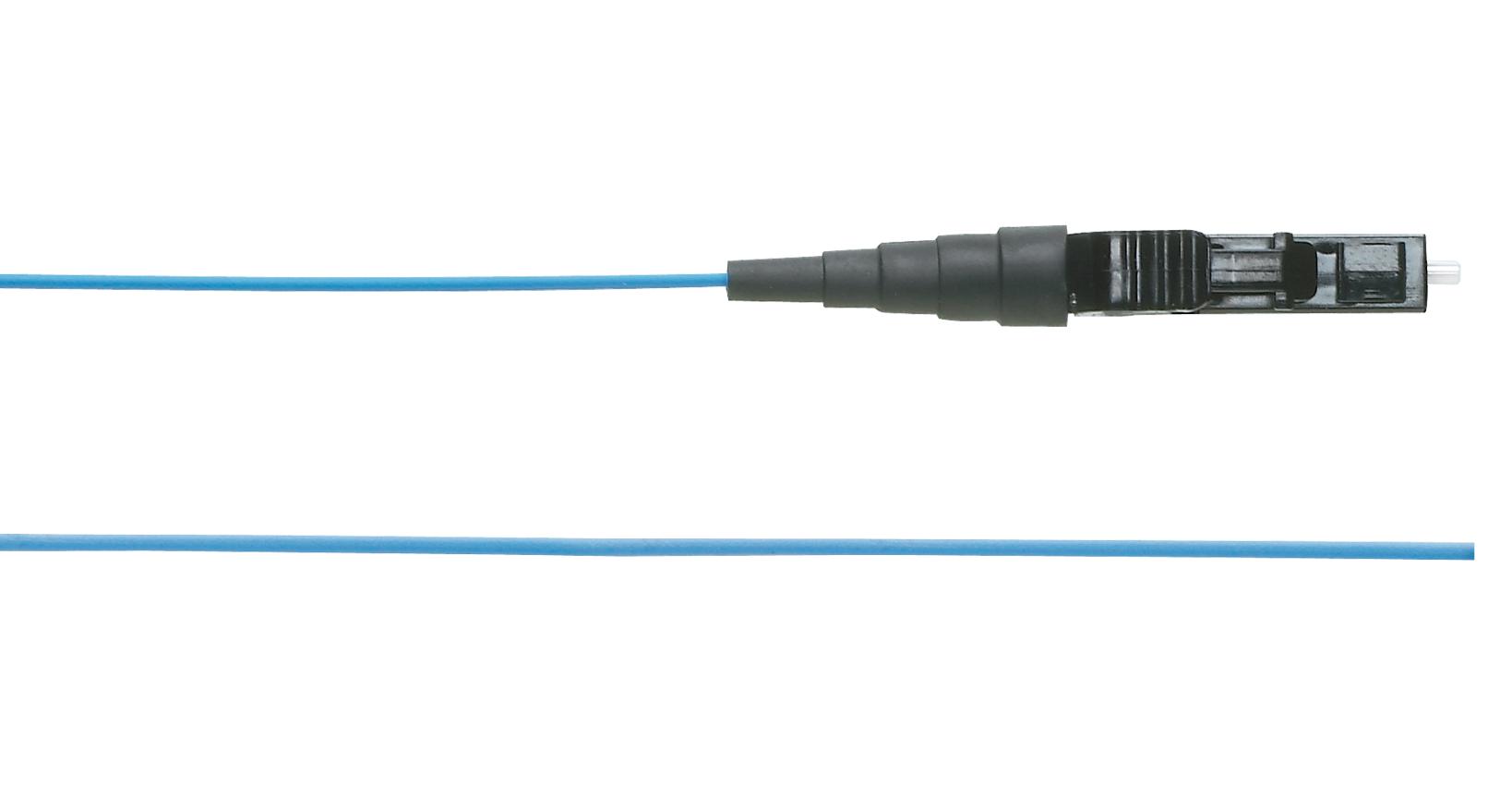

Panduit FX1BN1NNNSNM001 Fiber Optic Patch Cord
Opti-Core fiber optic patch cords and pigtails are designed for high-speed, reliable connections in data centers, telecommunications rooms, and entrance facilities. They support multimode OM1, OM2, OM3, OM4, and singlemode OS1/OS2 fibers in simplex or duplex configurations with jackets available in riser-rated (OFNR) and LSZH materials. These cords feature durable connectors rated for 500 cycles, low insertion loss, and return loss standards, ensuring optimal signal integrity in various network environments. They are ideal for interconnecting pre-terminated cassettes and supporting Gigabit Ethernet, 10 Gigabit Ethernet, and Fibre Channel applications.
Panduit FX1BN1NNNSNM001 Fiber Optic Patch Cord Specifications:
- Fiber count: simplex (1 fiber), duplex (2 fibers)
- Cable outside diameter: 1.6mm duplex, 3mm simplex, 900 micron buffered
- Jacket ratings: Riser (OFNR), LSZH compliant per IEC standards
- Connector durability: 500 cycles, connector retention: 50N @ 0°C, 19.4N @ 90°C
- Fiber types: Singlemode OS1/OS2 9/125um, Multimode OM1 62.5/125um, OM2 50/125um, OM3 50/125um, OM4 50/125um
- Minimum bend radius: 16mm (1.6mm cable), 29mm (3mm cable)
- Insertion loss: 0.15dB, ULTRA IL 0.10dB, Max return loss: 55dB (OS1/OS2)
- Operating temperature: -20°C to 70°C; Shipping temperature: -40°C to 70°C
- Standards: ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3, TIA-604-10
- ROHS compliant, suitable for high-speed network applications
Buy the Buy Panbuit Fiber Optic Patch Cords Part Number FX1BN1NNNSNM001 Online
Enhance your network with Panbuit Fiber Optic Patch Cords model FX1BN1NNNSNM001, supporting multimode and singlemode fibers with durable connectors. Perfect for data centers, telecommunications rooms, and enterprise applications, these patch cords offer low insertion loss, high return loss, and superior performance standards. The cords are available in riser-rated (OFNR) and LSZH ratings, providing safety and compliance. Easy to install and highly reliable, they ensure seamless connectivity and optimal data transmission for high-speed networks.
Buy Panbuit FX1BN1NNNSNM001 fiber patch cords now and experience unmatched reliability and high-speed data transmission in your network setup.
Frequently Asked Questions
Where can I buy Panduit FX1BN1NNNSNM001?
You can click on the BUY or RFQ button to purchase FX1BN1NNNSNM001 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part FX1BN1NNNSNM001?
You can download the FX1BN1NNNSNM001 datasheet or visit the Panduit website for support.
Who is the manufacturer of FX1BN1NNNSNM001?
Panduit
