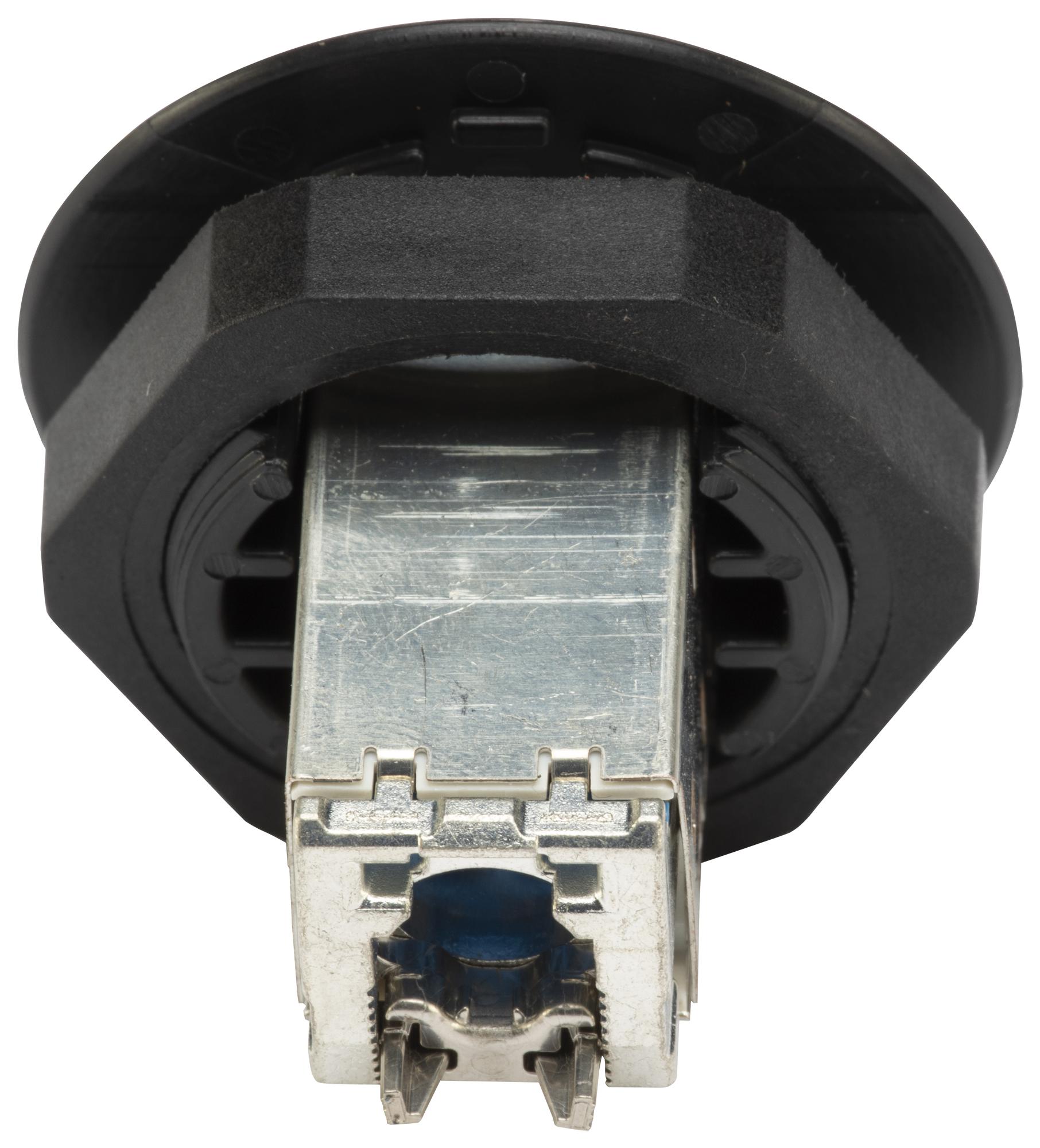

Panduit ISSP2SJ5ENNBL Industrial Ethernet Port
IndustrialNet Single Service Ports are designed for reliable Ethernet connectivity in industrial environments. Constructed from durable polycarbonate rated UL94 V-0/5VA, they support high-temperature conditions up to 85°C. These ports feature industry-standard RJ45 interfaces, plug-and-play installation, and compatibility with Category 6A cables with gold-plated contacts for optimal data transfer. Suitable for light manufacturing and industrial applications, they provide secure, error-free connections even in vibration and temperature extremes, supporting PoE and IEC compliance for versatile networking solutions in demanding settings.
Panduit ISSP2SJ5ENNBL Industrial Ethernet Port Specifications:
- Material: Black polycarbonate plastic, UL94 V-0/5VA rated
- Temperature rating: -20°C to 70°C (-4°F to 158°F), high temp resilience up to 85°C storage
- Connector type: RJ45 interface, industry standard for Ethernet
- Compatibility: Supports Category 6A UTP and STP cables, 22-26 AWG, 0.060 in. (1.5mm) insulation diameter, cable O.D. 0.200 in. (5.1mm) to 0.330 in. (8.4mm)
- Mounting: Standard 30.5mm punch hole, anti-rotation feature, fits into IEC faceplates
- Electrical performance: Meets IEC 60603-7, ANSI/TIA-568.2-D, FCC, RoHS, and IEEE 802.3af/at PoE standards
- Ingress protection: Rated IP40 with shuttered connectors, suitable for industrial settings
- Design: Includes silicone plug and optional mounting nut, error-free performance with gold-plated contacts (50 microinches)
Buy the IndustrialNet ISSP2SJ5ENNBL – Reliable Ethernet Ports for Industrial Applications
Enhance your industrial network setup with the IndustrialNet Ethernet Port. Designed for durability, high temperature resilience, and vibration resistance, it ensures secure, error-free data transmission in manufacturing, metal processing, automotive, and chemical environments. Easy to install with standard punch fittings, the port supports PoE applications, adheres to IEC and ANSI/TIA standards, and features gold-plated contacts for superior connectivity. Purchase online today for reliable industrial communication that withstands rugged conditions and vibration challenges.
Get IndustrialNet ISSP2SJ5ENNBL today—built for industrial Ethernet in high-temperature and vibration-prone environments.
Frequently Asked Questions
Where can I buy Panduit ISSP2SJ5ENNBL?
You can click on the BUY or RFQ button to purchase ISSP2SJ5ENNBL from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part ISSP2SJ5ENNBL?
You can download the ISSP2SJ5ENNBL datasheet or visit the Panduit website for support.
Who is the manufacturer of ISSP2SJ5ENNBL?
Panduit
