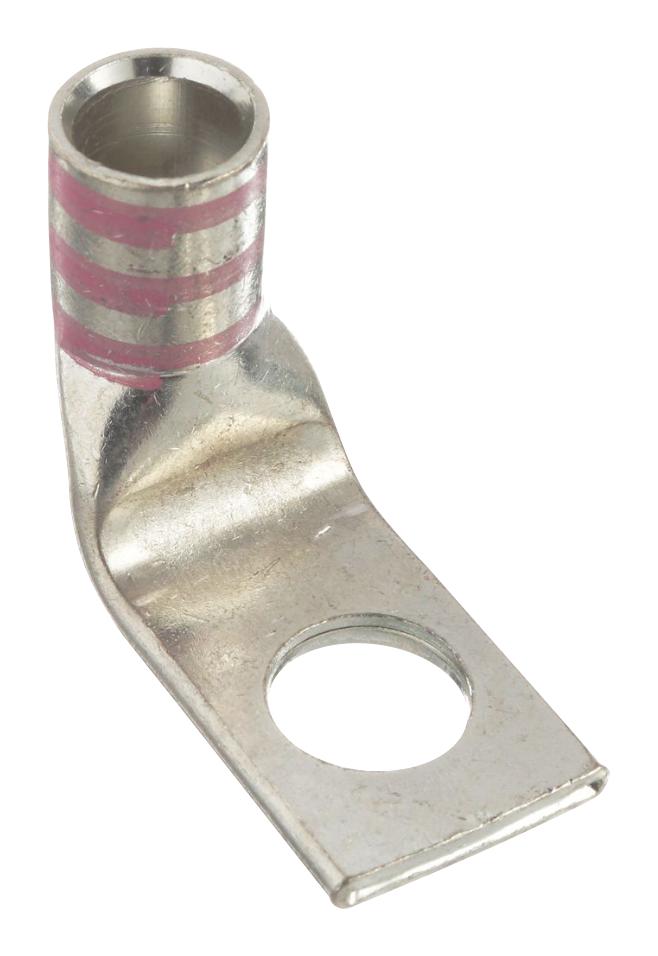

Panduit LCAX1012FX Flexible Conductor Lug
The Panduit LCAX1/0-12F-X flexible conductor lug provides a secure and reliable connection for flexible, extra-flexible, and code stranded copper conductors. Its generously beveled wire entry minimizes damage during insertion, while the inspection window ensures full conductor seating. Color-coded barrels simplify die selection, and the tin-plated finish enhances corrosion resistance. This lug is suitable for a wide range of industrial applications requiring robust and dependable wire terminations.
Panduit LCAX1012FX Flexible Conductor Lug Specifications:
- Can be used with: code conductor and flex conductor class: G, H, I, K, M and Diesel Locomotive
- Wire entry: generously beveled to prevent bent back strands
- Color-coded barrels: marked with Panduit and specified competitor die index numbers
- Inspection window: to visually assure full conductor insertion
- Finish: Tin-plated to inhibit corrosion
- UL Listed and CSA Certified: to 35 KV and temperature rated to 90°C
- Crimping tools: Panduit and specified competitor crimping tools and dies
- American Bureau of Shipping approved: Yes
- Flex Conductor Size: #8 AWG
- Code Conductor Size: #8 AWG
- Stud Hole Size (In.): #10
- Figure Dimensions (In.): 0.41
- Panduit Color Code: Red
- Panduit Die Index No: P21
- Burndy Die Index No: 49
- T&B Die Index No: 21
- Wire Strip Length (In.): 1/2
- Std Pkg Qty: 50
