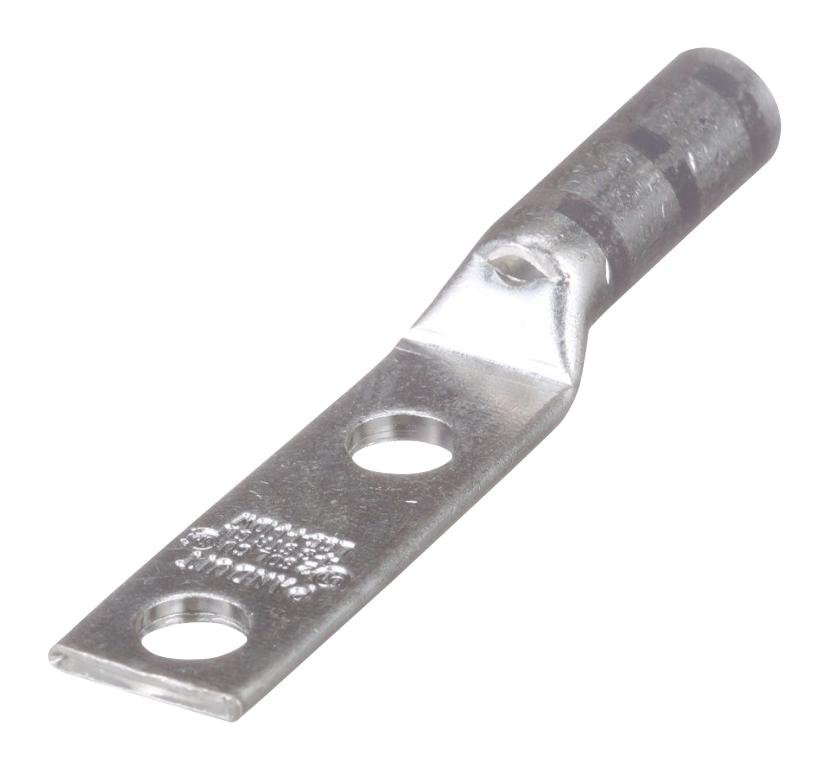

Panduit LCC414DWL Long Barrel Wire Connector
The Panduit LCC4-14DW-L is a robust long barrel wire connector suitable for a variety of industrial applications. Designed to securely connect stranded and solid copper wires, this connector features a convenient wire inspection window to ensure proper termination. It is UL Listed for use up to 35kv, making it suitable for high-voltage applications. The color-coded barrel markings and die index provide easy identification and proper tooling selection.
Panduit LCC414DWL Long Barrel Wire Connector Specifications:
- Material: Seamless Copper Tube
- Plating: Electro-Tin
- Wire Size: 4 AWG, 3 AWG & 2 SOL
- Wire Type: Stranded Copper; Class B, Class C
- Wire Strip Length: 1-1/8 in.
- Stud Size: 1/4 in.
- UL Listed: Yes, up to 35kv
- UL Temperature Rating: 90 C
- CSA Certified: Yes
- Panduit Color Code: GRAY
- Panduit Die Index: P29
- Alternate Die Index: (8)
- Dimensions: {'Overall Length': '2.87±.06', 'Wire Inspection Window': '1.05±.04', 'Wire Entry': '.28±.01', 'Beveled Wire Entry': 'True', 'Diameter': '.27±.02 DIA', 'PLS': '(2) PLS', 'Length': '1.00±.02'}
