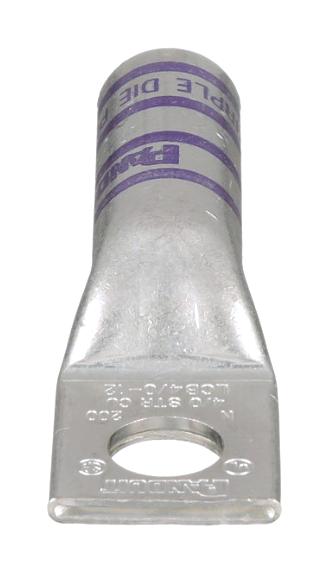

Panduit LCB4012X One-Hole Long Barrel Lug
The Panduit LCB4/0-12-X copper lug connector provides a secure and reliable termination point for stranded copper wires. Constructed with a seamless copper tube and electro-tin plating, it ensures excellent electrical conductivity and resistance to corrosion. The long barrel design accommodates a wider range of wire sizes, and the connector is UL Listed for applications up to 35kv, making it suitable for demanding industrial environments. Markings on the barrel indicate wire type and Panduit die index for proper installation.
Panduit LCB4012X One-Hole Long Barrel Lug Specifications:
- Material: High Conductivity Seamless Copper Tube
- Plating: Electro-Tin
- Wire Type: Stranded Copper; Class B/C
- Strip Length: 1-5/8 in
- UL Listed Voltage: Up to 35kv
- UL Temperature Rating: 90°C
- CSA Certified: Yes
- Panduit Color Code: PURPLE
- Panduit Die Index: P54, 714.01
- Wire Diameter: 0.53+.02 DIA
- Connector Voltage Stress Relief: Consult cable manufacturer
Buy the LCB4/0-12-X Panduit One-Hole Long Barrel Lug | myMectronic
Purchase the Panduit LCB4/0-12-X copper lug connector securely and conveniently online.
