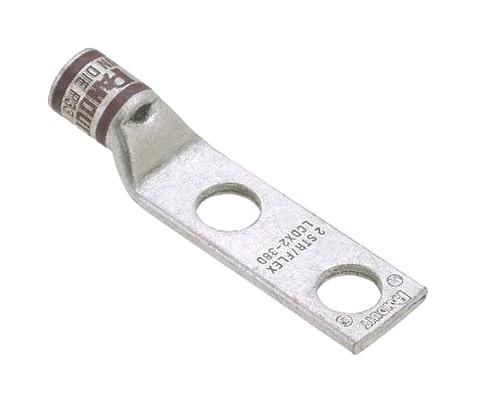

Panduit LCDX256DE Two-Hole Standard Flex Barrel
The Panduit LCDX2-56D-E is a robust copper lug connector engineered for secure and reliable electrical connections. Constructed from high-conductivity seamless copper tubing and finished with electro-tin plating, this connector ensures excellent conductivity and corrosion resistance. Designed for stranded copper wires (Class B, C, G, H, K, M, and ~), it accommodates a wide range of wire gauges. The connector is UL Listed for applications up to 35kV and CSA certified, making it suitable for demanding industrial environments. The wire inspection window allows for visual confirmation of proper termination, enhancing safety and reliability. Consult cable manufacturer for voltage stress relief instructions for applications exceeding 24kV.
Panduit LCDX256DE Two-Hole Standard Flex Barrel Specifications:
- Material: High Conductivity Seamless Copper Tube
- Plating: Electro-Tin
- Reference: .44 R
- Wire Type: Stranded Copper: Class B & C, Compact, Class G, H, |, K, M, ~
- Stud Strip Length: 11/16 in.
- Size: 5/16 in.
- UL Listed Wire: Yes, for applications up to 35kv
- Connector: Consult cable manufacturer for voltage stress relief instructions
- Diameter: .34+.02 DIA
- Voltage Rating: 2000 volts
- UL Temperature: 90°C
- C.S.A Certified: Yes
- Panduit Color Code: BROWN
- Die Index No: .47+.01
- Drawing No: LCDX2-56D-CUST
- Revision Date: 00 6/03
Buy the LCDX2-56D-E PANDUIT Two-Hole Standard Flex Barrel | myMectronic
Purchase the Panduit LCDX2-56D-E copper lug connector securely and conveniently online.
