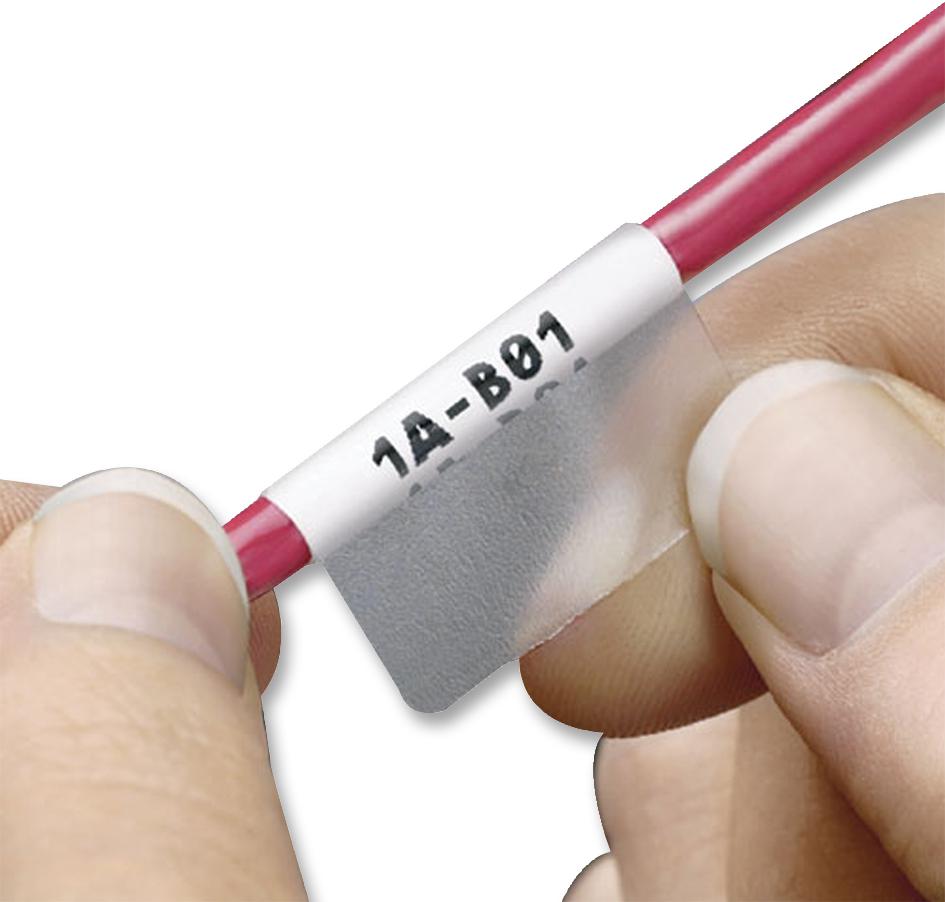

Panduit S100X160VAC Wire Label Cassette
The P1 thermal transfer self-laminating label cassette features a white print area with a clear overlaminate, offering durability for wire and cable identification. It includes an integrated memory device that enables automatic legend formatting, recall of the last used legend, and tracking of remaining labels. Designed with a pressure sensitive acrylic adhesive on a 3.2 mil thick vinyl film, it withstands temperatures from -50°F to 225°F and UV exposure for up to 3000 hours. Suitable for thermal transfer printing, it is RoHS compliant and compatible with LS8E and LS8EQ printers, ensuring reliable, long-lasting wire marking solutions.
Panduit S100X160VAC Wire Label Cassette Specifications:
- Material: RoHS compliant, vinyl film with pressure sensitive acrylic adhesive
- Thickness: 3.2 +/- 0.4 mils
- Print Area: White with color print on tape
- Service Temperature Range: -50°F to 225°F (-45.6°C to 107°C)
- UV Resistance: up to 3000 hours with no change
- Adhesive Peel Strength: Minimum 28 oz/in (15-minute dwell), 40 oz/in (24-hour dwell)
- Shear Adhesion: Minimum 3 hours
- Tensile Strength: 8 +/- 1.5 lbs/in
- Elongation: 150% +/- 10%
- Dielectric Strength: 2,133 Volts/Mil
- Chemical Resistance: No effect after immersion in water, mineral spirits, oils, alcohols, acids, and fuels for 24 hours
- Storage Conditions: Store at 70°F, 50% RH
Buy the Buy Panduit Label Cassette Part Number S100X160VAC Online
Enhance your wire and cable identification with the Panduit S100X160VAC self-laminating label cassette. Featuring a white print area, clear overlaminate, and an integrated memory device, this cassette allows for automatic formatting, recall of last labels, and tracking of remaining labels. Made from a 3.2 mil vinyl film with pressure sensitive adhesive, it withstands temperatures from -50°F to 225°F and UV exposure for up to 3000 hours, making it perfect for durable, outdoor, and industrial wire marking applications. Compatible with LS8E and LS8EQ printers, this product guarantees reliable performance and long-lasting labels for every project.
Order your Panduit S100X160VAC series cable label cassette today and ensure lasting wire and cable identification with durable vinyl and easy thermal transfer printing.
Frequently Asked Questions
Where can I buy Panduit S100X160VAC?
You can click on the BUY or RFQ button to purchase S100X160VAC from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part S100X160VAC?
You can download the S100X160VAC datasheet or visit the Panduit website for support.
Who is the manufacturer of S100X160VAC?
Panduit
