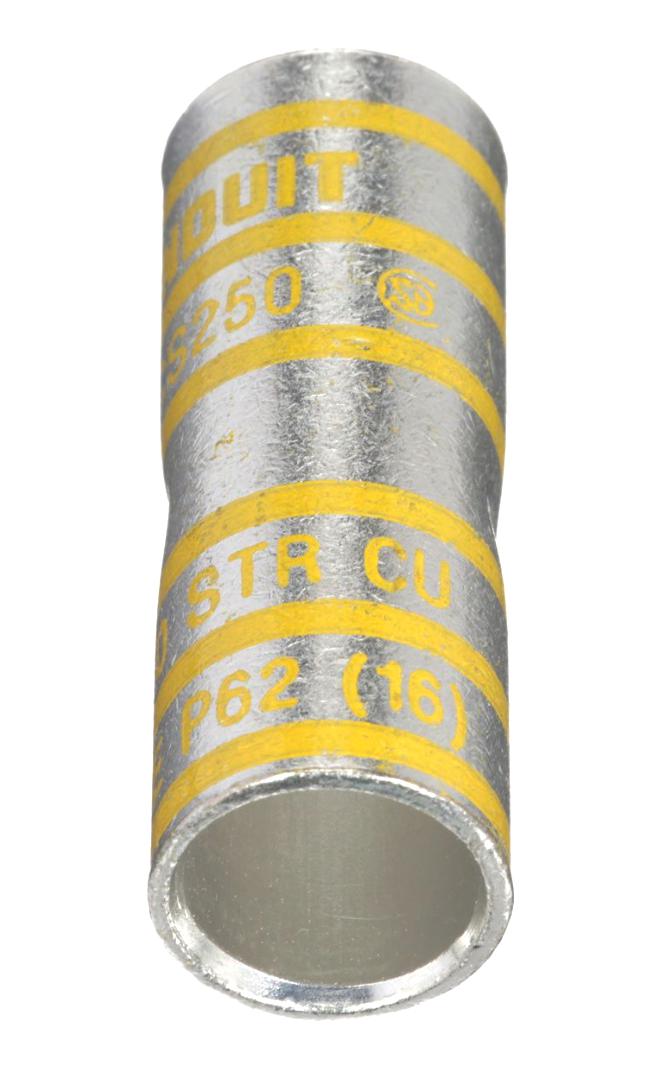

Panduit SCS250X Copper Butt Splice Connector
The Panduit SCS250-X copper butt splice connector is engineered for reliable electrical connections in various industrial applications. Designed for use with stranded copper conductors, it incorporates color-coded barrels marked with PANDUIT and competitor die index numbers to ensure accurate crimp die selection. Internal wire stops prevent over-insertion, while tin plating inhibits corrosion. The connector is UL Listed and CSA Certified to 35 KV and temperature rated to 90°C when used with appropriate PANDUIT crimping tools and dies. It also meets NEBS Level 3 standards and is approved by the American Bureau of Shipping, making it suitable for demanding environments.
Panduit SCS250X Copper Butt Splice Connector Specifications:
- conductor_size: 250 kcmil
- barrel_od: 0.77
- barrel_id: 0.63
- panduit_color_code: Yellow
- panduit_die_index_no: P62
- length_in: 2.25
- length_mm: 57.2
- wire_strip_length_in: 1 1/16
- min_order_uom: PC
- min_order_qty: 1
- burndy_die_index_no: 16
- t_and_b_die_index_no: 62
- ul_listed: Yes
- csa_certified: Yes
- telcordia_neb_level: 3
- abs_approved: Yes
- product_type: Compression Connectors - Splices
