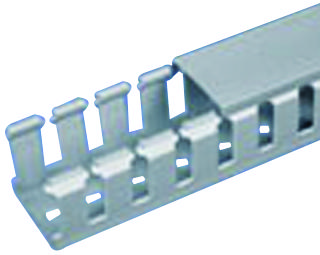

Panduit TNC100X50LG2 Wall Wiring Duct
Panduit Type TNC wiring duct is a low-smoke, halogen-free slotted wall wiring duct designed for high safety standards in regulated environments like rail transit, offshore platforms, and data centers. Made from UL94 V-0 rated PPE+HIPS material, it offers excellent flame resistance, smoke suppression, and toxicity control, ensuring fire safety and environmental compliance. Its wide-finger design provides greater strength and flexibility, facilitating easy installation and separation of cable types. Suitable for creating multiple pathways with divider walls, it supports reliable electrical and communication cabling management in critical infrastructure projects, adhering to international fire and safety standards.
Panduit TNC100X50LG2 Wall Wiring Duct Specifications:
- Material: PPE+HIPS (Polyphenylene Ether + High Impact Polystyrene)
- Flammability Class: UL94 V-0
- Temperature Range: Continuous use up to 105°C (221°F); handling and installation down to -70°C (-94°F)
- Smoke Density (Ds): 16 at 1.5 min, 66 at 4.0 min
- Fire Compliance: NFPA 130, DIN 5510-2, BSS 7239, NF F 16 101/102, EN UNI 11925-2
- Physical Dimensions: Various sizes including 25x37 mm, 25x75 mm, 37x37 mm, 37x75 mm, 50x50 mm, 75x75 mm, 100x50 mm, and 100x75 mm; wall thickness approx. 1.7-2.5 mm; length per segment 2 meters
- Construction: Slotted for easy cable entry, flush cover for aesthetics, with break-out scoring lines for quick modifications
- Divider Walls: Made of low-smoke halogen-free material, with mounting discs for easy installation in ducts
- Regional Standards: Meets NFPA 130, DIN 5510-2, NF F 16 101/102, UNIFER EN UNI 11925-2, RoHS, REACH
- Applications: Suitable for rail transit, control panels, communication management, offshore platforms, bus systems, data centers, and industrial environments
- Additional Features: Wide-finger design for additional rigidity, non-slip liner, multiple channels for cabling separation, various accessories like cutting and notching tools
Buy the Buy Panduit TNC100X50LG2 Part Number TNC100X50LG2 Online
Secure your electrical and communication cabling with Panduit's TNC100X50LG2 wiring duct, crafted from low-smoke, halogen-free material meeting strict fire safety standards. Its innovative design provides superior flexibility, strength, and ease of installation. With various sizes and accessories, it adapts to complex wiring projects in rail transit, data centers, and industrial settings, ensuring safe, reliable, and compliant wiring management. Order online today to improve safety, organization, and efficiency in your electrical infrastructure with proven quality and performance.
Order your Panduit Series TNC100X50LG2 halogen-free wiring duct today and enhance safety and organization in your critical communication and electrical systems.
Frequently Asked Questions
Where can I buy Panduit TNC100X50LG2?
You can click on the BUY or RFQ button to purchase TNC100X50LG2 from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part TNC100X50LG2?
You can download the TNC100X50LG2 datasheet or visit the Panduit website for support.
Who is the manufacturer of TNC100X50LG2?
Panduit
