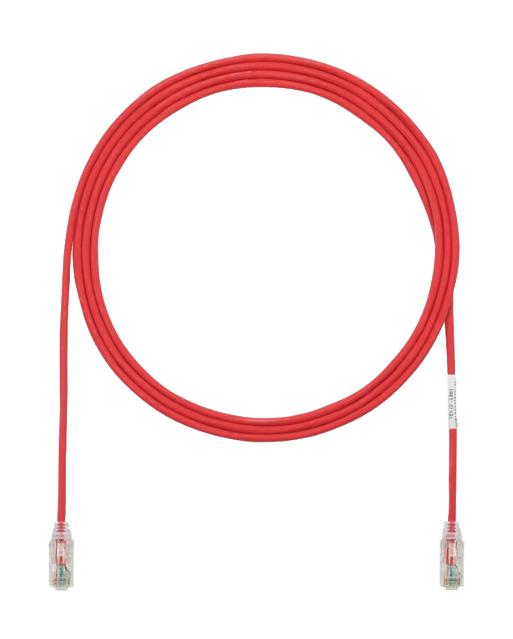

Panduit UTP28X10RD Category 6A Patch Cord
Category 6A performance patch cords designed for high-speed network applications. Crafted with 28 AWG unshielded twisted pair solid copper cables, these patch cords support 10GBASE-T Ethernet, data center I/O consolidation, backbone aggregation, and high-speed computing. They feature a smaller diameter, easy bend radius, and result in improved air flow, efficient cable management, and lower operating costs. Fully compliant with ANSI/TIA-568.2-D and ISO 11801 Class E standards, these cords are available in various lengths and colors, with robust gold-plated contacts rated for 2500 mating cycles.
Panduit UTP28X10RD Category 6A Patch Cord Specifications:
- Cable Type: Unshielded Twisted Pair (UTP)
- Wire Gauge: 28 AWG
- Material: Solid copper
- Diameter: 0.185 in. (4.7mm) nominal
- Supported Bandwidth: Up to 500 MHz
- Performance Standards: ANSI/TIA-568.2-D, ISO 11801 Class E
- PoE Support: IEEE 802.3af/at and 802.3bt
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Flammability: UL94V-0 rated, CMW/LSZH dual-rated
- Mating Cycles: Rated for 2500
- Connector: Gold-plated phosphor bronze contacts
- Lengths: From 1 ft to 50 ft, or 0.5 m to 40 m
- Color Options: White, Blue, Red, Yellow, Green, Orange, Gray, Violet
- Compliance: UL, cULus, IEC 60603-7, RoHS
Buy the Panduit UTP28X10RD – Reliable Category 6A Patch Cords for Industrial Applications
Enhance your network infrastructure with Panduit Category 6A patch cords, supporting 10GBASE-T Ethernet and PoE applications. These cords feature a smaller diameter for easy routing, high flexibility, and robust construction rated for 2500 mating cycles. Available in various lengths and colors to meet your installation needs, they comply with ANSI/TIA and ISO standards, ensuring reliable performance in demanding environments. Perfect for data centers, server virtualization, and high-speed computing, these patch cords deliver exceptional connectivity and durability for mission-critical networks.
Get Panduit UTP28X10RD today—built for high-speed Ethernet and durable data center connectivity.
Frequently Asked Questions
Where can I buy Panduit UTP28X10RD?
You can click on the BUY or RFQ button to purchase UTP28X10RD from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X10RD?
You can download the UTP28X10RD datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X10RD?
Panduit
