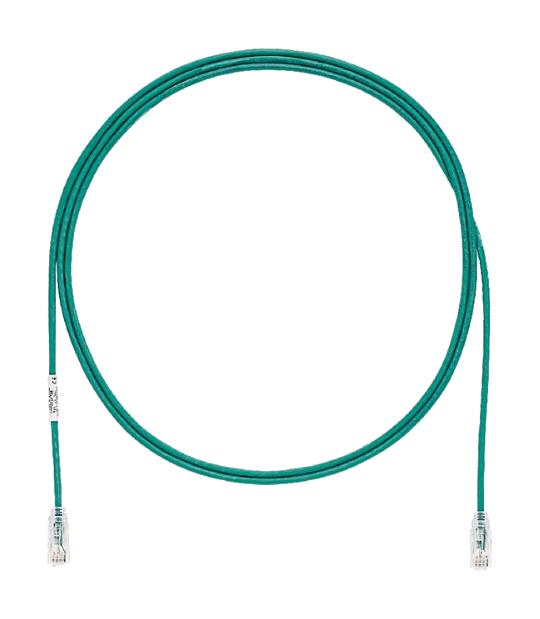

Panduit UTP28X3GR Category 6A Patch Cord
Category 6A Patch Cords are high-performance, unshielded twisted pair cables with 28 AWG solid copper conductors, designed for demanding data center and network applications. They support 10GBASE-T Ethernet, backbone aggregation, and high-speed computing setups, providing excellent electrical performance exceeding ANSI/TIA and ISO standards up to 500 MHz. With a smaller diameter, these flexible cords facilitate improved cable management, airflow, and cooling, reducing operational costs. Features include gold-plated contacts rated for 2500 mating cycles, tangle-free latch, variety in colors and lengths, and optional lock-in devices for secure connections.
Panduit UTP28X3GR Category 6A Patch Cord Specifications:
- Category 6A/Class Eq, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, solid copper (dual-rated CM/LSZH)
- Cable diameter: 0.185 in. (4.7mm) nominal
- Supported channel length: 96 meters including 90 meters permanent links and 10 meters patch cords
- Temperature range: -10°C to 75°C (14°F to 167°F), storage: -40°C to 70°C (-40°F to 158°F)
- Compliance: ANSI/TIA-568.2-D, ISO 11801 Class E, IEC 60603-7, UL 1863, CAN/CSA, RoHS, and PoE standards
- Connection: Gold plated contacts, rated for 2500 mating cycles, modular plug with tangle-free latch
- Lengths: 1 ft to 50 ft (0.5 m to 15 m), various colors, with optional suffixes for different colors
- Supports power over Ethernet: IEEE 802.3af/at/bt, and rated for high-density bundles (48 cables)
- Flammability rating: CMW/LSZH dual-rated, UL94V-0 rated plastic housing
- Operating temperature: -10°C to 75°C (14°F to 167°F), storage: -40°C to 70°C (-40°F to 158°F)
Buy the Buy Panduit Category 6A Patch Cords Part Number UTP28X3GR Online
Enhance your network infrastructure by purchasing this high-quality Panduit Category 6A Patch Cord online. Designed for superior performance, it supports 10G Ethernet, high-density data center setups, and PoE applications. Available in multiple lengths and colors, these cords feature gold-plated contacts rated for 2500 mating cycles, ensuring durability and reliable connections. The smaller diameter improves cable management and airflow, reducing operational costs. Easy to install with optional lock-in devices, these cords provide an excellent balance of performance, flexibility, and system safety for professional network deployments.
Order your Panduit Series UTP28X3GR high-performance patch cord today and optimize your data center connectivity with reliable, flexible Ethernet solutions.
Frequently Asked Questions
Where can I buy Panduit UTP28X3GR?
You can click on the BUY or RFQ button to purchase UTP28X3GR from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X3GR?
You can download the UTP28X3GR datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X3GR?
Panduit
