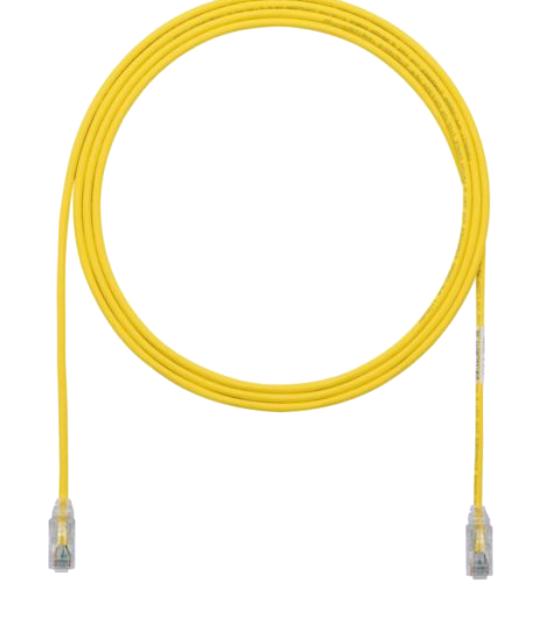

Panduit UTP28X5YL Ethernet Patch Cord
Panduit TX6A-28 Category 6A Performance Patch Cords are high-performance, 28 AWG unshielded twisted pair cables designed for reliable Ethernet connections. Constructed from solid copper with a small diameter, these cords support high-frequency applications up to 500 MHz, exceeding ANSI/TIA-568.2-D Category 6A standards. They feature durable gold-plated contacts, tangle-free latches, and color-coded lengths for system flexibility. Suitable for data centers, high-speed computing, and PoE applications, they ensure excellent performance, improved airflow, and easy cable management for demanding network environments.
Panduit UTP28X5YL Ethernet Patch Cord Specifications:
- Cable Type: UTP, Category 6A
- Conductor Material: Solid Copper
- AWG: 28
- Color: Various (White/Orange, White/Green, Blue, White/Blue, Green, White/Brown, Black, Blue, Red, Yellow, Green, Orange, Gray, Violet)
- Length Range: 0.5m to 40m (1 to 130 feet) in specified increments
- Diameter: 4.7mm (0.185 inches)
- Temperature Range: -40°F to 158°F (-40°C to 70°C)
- Flammability: CMW/LSZH dual-rated
- Electrical Performance: Exceeds ANSI/TIA-568.2-D and ISO 11801 Class E, supporting frequencies up to 500 MHz
- PoE Support: IEEE 802.3af/at and 802.3bt Type 3 and 4
- Certification: UL 1863, cULus Listed, CAN/CSA
- Durability: 2500 mating cycles with gold-plated contacts
- Compliance: RoHS, IEC 60603-7
- Features: Tangle-free latch, integral pair manager, identification label
- Operating Temp: -10°C to 75°C
- Storage Temp: -40°C to 70°C
Buy the Panduit UTP28X5YL – Reliable Ethernet Patch Cords for Industrial Applications
Order Panduit UTP28X5YL Ethernet patch cords online today and enjoy seamless, high-speed network performance. Designed for reliability and ease of use, these patch cords support PoE applications and comply with international standards. Available in multiple lengths and colors, they ensure efficient cable management in data centers, server rooms, and high-density network environments. Invest in quality cabling solutions that promote excellent airflow, cooling, and ease of installation, perfect for demanding industrial and commercial networking needs.
Buy Panduit UTP28X5YL now and experience unmatched reliability, high performance, and flexible network connectivity solutions.
