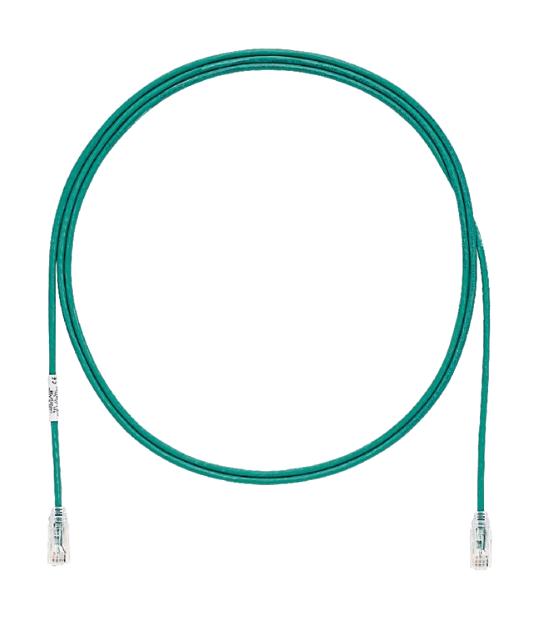

Panduit UTP28X7GR Category 6A Patch Cord
Category 6A performance patch cords engineered for high-speed networks, these 28 AWG unshielded twisted pair cables feature solid copper conductors, minimized diameter for flexibility, and enhanced airflow. Constructed to meet ANSI/TIA-568.2-D and ISO 11801 Class E standards, they support 10GBASE-T Ethernet, data center consolidation, backbone aggregation, and high-speed computing. Featuring a tangle-free latch, robust gold-plated contacts, and optional plug lock-in devices, they ensure reliable connectivity. Available in varied lengths and colors, these durable cords facilitate improved cable management, lower operational costs, and superior performance in demanding network environments.
Panduit UTP28X7GR Category 6A Patch Cord Specifications:
- Category 6A/Class E compliance, exceeds ANSI/TIA-568.2-D and ISO 11801 standards for frequencies up to 500 MHz
- Constructed of 28 AWG solid copper conductors, unshielded twisted pair (UTP), dual-rated CM/LSZH
- Cable diameter: 0.185 in. (4.7mm), flexible and supports tight bend radius
- Lengths available from 1 foot to 50 feet, with various color options (white, black, blue, red, yellow, green, orange, gray, violet)
- Gold-plated contacts with 50 microinches of gold, rated for 2,500 mating cycles
- Supports PoE applications including IEEE 802.3af/at and 802.3bt (types 3 and 4), with cULus and UL 1863 listings
- Temperature range: -40°F to 158°F (-40°C to 70°C), flammability rated UL94V-0, CMW/LSZH dual-rated
- Features a patent-pending tangle-free latch, identification label for traceability, and optional plug lock-in and latch guard devices
- Designed for high-density installations, offering improved airflow, cooling, and cable routing flexibility
- Contains integral pair management to reduce untwist at the plug, ensuring consistent electrical performance
Buy the Panduit Series TX6A-28 Category 6A Patch Cords: UTP 28 AWG - UTP28X7GR
Order Panduit TX6A-28 Category 6A Patch Cords today for superior performance in high-speed Ethernet applications. These flexible, durable, and lightweight cords support 10GBASE-T, data center consolidation, backbone aggregation, and high-speed computing environments. With various lengths and vibrant color options, they ensure easy identification and efficient cable management. Featuring gold-plated contacts, a tangle-free latch, optional plug lock-in, and compliance with industry standards, these patch cords deliver reliable connectivity, reduced interference, and lower operating costs for your network infrastructure needs.
Buy Panduit TX6A-28 patch cords now and experience unmatched reliability, flexible cable management, and high-speed network performance.
Frequently Asked Questions
Where can I buy Panduit UTP28X7GR?
You can click on the BUY or RFQ button to purchase UTP28X7GR from an authorized Panduit distributor.
How do I troubleshoot issues or seek technical support for part UTP28X7GR?
You can download the UTP28X7GR datasheet or visit the Panduit website for support.
Who is the manufacturer of UTP28X7GR?
Panduit
