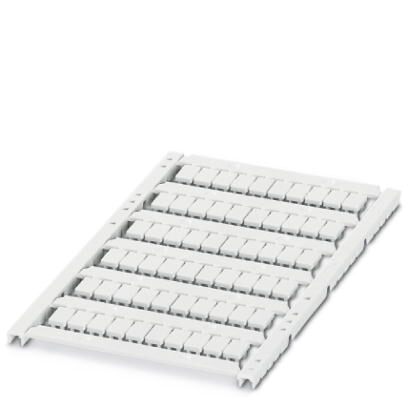

Phoenix Contact 0829252 Terminal Block Marker
The Phoenix Contact UCT3-TM 6 UniCard markers provide a reliable and efficient solution for labeling terminal blocks. These markers are specifically designed for use with Wieland and Legrand terminal blocks, ensuring a perfect fit and secure attachment. They are compatible with both THERMOMARK CARD and BLUEMARK LED marking systems, allowing for flexible and customizable labeling options. The markers are made from durable PC material, ensuring long-lasting readability and resistance to harsh environmental conditions. Phoenix Contact also offers custom labeling services to meet specific project requirements, streamlining identification and improving overall operational efficiency in industrial settings.
Phoenix Contact 0829252 Terminal Block Marker Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4046356609449
- Weight per Piece (excluding packing): 14.000 g
- Custom tariff number: 39269097
- Country of origin: Poland
- Length (b): 8.2 mm
- Width (a): 5.45 mm
- Height (c): 4.3 mm
- Ambient temperature (operation): -40 °C ... 120 °C
- Recommended storage conditions: 23 °C/50 % relative humidity
- Can be labeled via: thermal transfer
- Color: white
- Type: high
- Components: free from silicone and halogen
- Flammability rating according to UL 94: V0
- Material: PC
- RoHS compliant: Yes
- Wipe resistance: DIN EN 61010-1 (VDE 0411-1)
- Number of individual labels: 60
- Number of individual labels per row: 10
- Test for substances: VW PV 3.10.7:2005-02
- Result of test: Test passed
- Weather resistance test specification: Following ISO 4892-2:2013-03
- Test duration: 96 h
- Result of weather resistance test: Test passed
- Salt spray test specification: DIN EN 60068-2-11:2000-02
- Salt spray test duration: 96 h
- Salt spray testing result: Test passed
- Wipe resistance of test specification inscriptions: DIN EN 61010-1 (VDE 0411-1):2011-07
- Result of wipe resistance test: Test passed
- Marking mounting type: snap into tall marker groove
- Oxygen index (DIN EN ISO 4589-2): 32.4 %
- R22: HL 1 - HL 3
- R23: HL 1 - HL 3
- R24: HL 1 - HL 3
- eCl@ss 4.0: 24190200
- eCl@ss 4.1: 24190200
- eCl@ss 5.0: 27141100
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141137
- eCl@ss 8.0: 27141137
- eCl@ss 9.0: 27141137
- ETIM 2.0: EC000761
- ETIM 3.0: EC000761
- ETIM 4.0: EC000761
- ETIM 5.0: EC000761
- ETIM 6.0: EC000761
- ETIM 7.0: EC000761
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39131505
- UNSPSC 18.0: 39131505
- UNSPSC 19.0: 39131505
- UNSPSC 20.0: 39131505
- UNSPSC 21.0: 39131505
