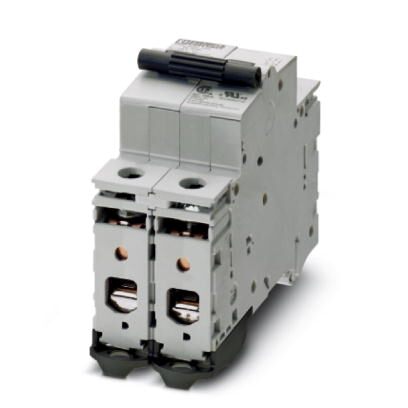

Phoenix Contact 0902221 Thermomagnetic Circuit Breaker
This two-pole thermomagnetic circuit breaker is designed for control panels and industrial systems, rated at 10A with a thermal trip. It mounts on a 35mm DIN rail and is UL 1077 recognized, ensuring reliable overcurrent and short circuit protection. The device includes an optional auxiliary contact for remote signaling, suitable for automation and electrical infrastructure. With a height of 86 mm and width of 36 mm, it offers robust protection for wiring and equipment in diverse ambient conditions from -25°C to 55°C, making it ideal for demanding industrial applications.
Phoenix Contact 0902221 Thermomagnetic Circuit Breaker Specifications:
- Mounting type: DIN rail (35 mm)
- Rated current: 10A
- Operating voltage: 480 V AC (UL 1077)
- Number of poles: Two
- Thermal trip: Yes
- Short-circuit switching capacity: 10 kA (IC)
- Dimensions: Height 86 mm, Width 36 mm
- Ambient temperature: -25°C to 55°C
- Standards: UL 1077, CSA, cUL Recognized, cULus Recognized
- Compliance: eCl@ss 6.0 27141116, ETIM 3.0 EC000899, UNSPSC 39121411
Buy the Phoenix Contact Series TMC 62C Circuit Breaker: 0902221
Buy your Phoenix Contact Series TMC 62C 10A thermomagnetic circuit breaker online today and secure dependable overcurrent and short circuit protection for your electrical systems. Designed for DIN rail mounting with UL recognition, this two-pole device features a thermal trip, optional auxiliary contact for remote signaling, and complies with global safety standards. Its compact size and robust construction make it suitable for industrial environments operating in extreme temperatures from -25°C to 55°C. Get reliable, easy-to-install protection now to safeguard your wiring and equipment efficiently.
Order your Phoenix Contact Series TMC 62C 10A circuit breaker today and ensure reliable protection for your control systems and industrial wiring.
Frequently Asked Questions
Where can I buy Phoenix Contact 0902221?
You can click on the BUY or RFQ button to purchase 0902221 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 0902221?
You can download the 0902221 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 0902221?
Phoenix Contact
