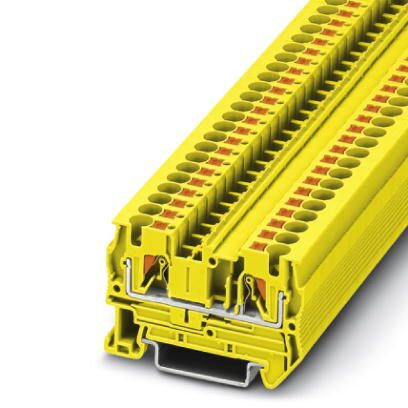

Phoenix Contact 3211762 Feed-Through Terminal Block
The PHOENIX CONTACT PT 4 YE feed-through terminal block is a versatile solution for connecting conductors in various industrial applications. Its push-in connection simplifies wiring, eliminating the need for tools and reducing installation time. The compact design allows for efficient use of space, while the front connection facilitates wiring in tight areas. Tested for railway applications and featuring an additional test connection, this terminal block ensures reliable performance in demanding environments. It is suitable for machine building, plant engineering, and process industries.
Phoenix Contact 3211762 Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: yellow
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum load current: 36 A (with 6 mm² conductor cross section)
- Nominal current IN: 32 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 9.2 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Width: 6.2 mm
- End cover width: 2.2 mm
- Length: 56 mm
- Height: 35.3 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Connection method: Push-in connection
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 24
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Stripping length: 10 mm ... 12 mm
- Internal cylindrical gage: A4
- eCl@ss 4.0: 27141121
- eCl@ss 4.1: 27141121
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
