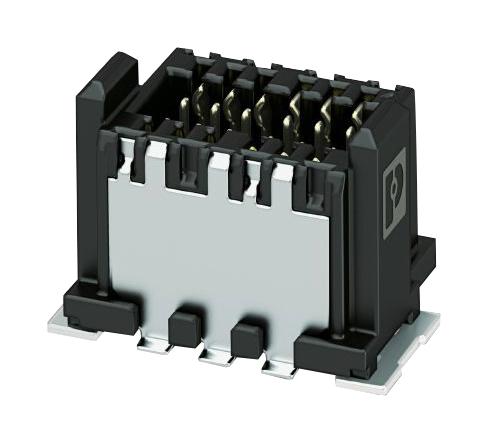

Phoenix Contact 1043786 SMD Male Connector Shielded
The Phoenix Contact FP 0,8/ 12-MV-SH 1,15 is a shielded SMD male connector designed for robust and reliable connections in various industrial applications. Featuring 12 positions and a 0.8mm pitch, this connector utilizes gold-plated contacts for stable signal transfer and incorporates ScaleX technology for high tolerance compensation and contact protection. Its flexible design allows for various numbers of positions and stack heights, making it suitable for diverse device configurations. Compliant with WEEE/RoHS standards and featuring a V0 flammability rating, this connector ensures both environmental responsibility and safety.
Phoenix Contact 1043786 SMD Male Connector Shielded Specifications:
- Nominal current at 20 °C: 1.7 A
- Test voltage: 500 V AC
- Number of positions: 12
- Pitch: 0.8 mm
- Color: black
- Contact surface: Gold
- Mounting: SMD soldering
- Plug-in system: FINEPITCH 0,8 mm shielded
- Type of contact: Male connector
- Electrical characteristic: shielded
- Range of articles: FP 0,8/...-MV-SH 1,15
- Number of levels: 2
- Number of potentials: 12
- Contact resistance: ≤20 mΩ
- Insulation resistance: ≥ 5 GΩ
- Contact material: Cu alloy
- Surface characteristics: Selective coating
- Metal surface contact area (top layer): Gold (Au)
- Metal surface contact area (middle layer): Nickel (Ni)
- Metal surface soldering area (top layer): Tin (Sn)
- Metal surface soldering area (middle layer): Nickel (Ni)
- Insulating material: LCP
- Insulating material group: IIIa
- CTI according to IEC 60112: 150
- Flammability rating according to UL 94: V0
- Length [ l ]: 6.1 mm
- Width [ w ]: 8.7 mm
- Height [ h ]: 6.25 mm
- Height (without solder pin): 5.65 mm
- Coplanarity: ≤ 0.1 mm
- Contact cover: 0.8 mm
- Overlap length: 1.5 mm
- Medium offset: ± 0.7 mm
- Angular tolerance: ± 2 °
- Stack height: 6 mm
- Packing unit: 500 pc
- Minimum order quantity: 500 pc
- Custom tariff number: 85366990
- Note: Made to Order (non-returnable)
