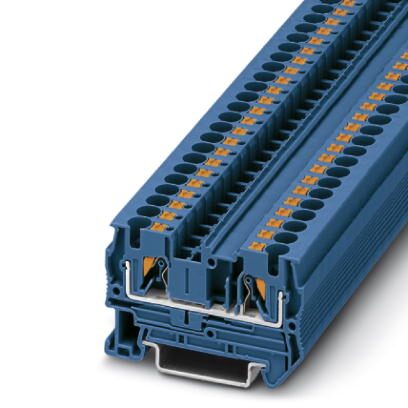

Phoenix Contact 3211760 Feed-Through Terminal Block
The PHOENIX CONTACT PT 4 BU feed-through terminal block is a versatile solution for connecting conductors in various industrial environments. Its push-in connection simplifies wiring, eliminating the need for tools. The compact design and front connection enable efficient use of space, making it ideal for applications in railway, plant, and process industries. The terminal block supports conductor cross-sections from 0.2 to 6 mm² (24-10 AWG) and is characterized by its robust construction and compliance with industry standards like IEC 60947-7-1. It also includes a testing facility and is designed for reliable performance in demanding environments.
Phoenix Contact 3211760 Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 9.6 g
- Custom tariff number: 85369010
- Country of origin: China
- Rated surge voltage: 8 kV
- Pollution degree: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-1
- Maximum load current: 36 A (with 6 mm² conductor cross section)
- Nominal current IN: 32 A
- Nominal voltage UN: 800 V
- Open side panel: ja
- Width: 6.2 mm
- End cover width: 2.2 mm
- Length: 56 mm
- Height: 35.3 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Connection method: Push-in connection
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 24
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Stripping length: 10 mm ... 12 mm
- Internal cylindrical gage: A4
- eCl@ss 4.0: 27141121
- eCl@ss 4.1: 27141121
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141120
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000897
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
Buy the 3211760 PHOENIX CONTACT Feed-Through Terminal Block | myMectronic
Purchase the PHOENIX CONTACT 3211760 Feed-Through Terminal Block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3211760?
You can click on the BUY or RFQ button to purchase 3211760 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3211760?
You can download the 3211760 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3211760?
Phoenix Contact
