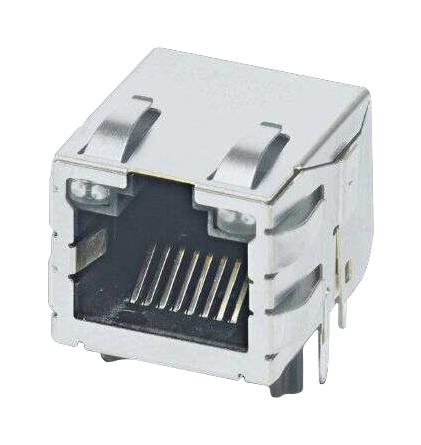

Phoenix Contact 1099281 Ethernet Socket
The RJ45 socket insert offers high-speed data transmission up to 10 Gbps with a robust IP20 protection rating. Designed for industrial applications, it features solder connections, durable copper alloy contacts with gold surface, and supports IEC standards. The device ensures reliable connectivity with a 360° shielding, hybrid LED status indicators, and resistance to shock and vibration. Its compact size and PCB mounting make it ideal for demanding environments requiring efficient, EMC-compliant Ethernet connections over extended temperature ranges from -40°C to 105°C.
Phoenix Contact 1099281 Ethernet Socket Specifications:
- Number of positions: 8
- Data transmission: 10 Gbps
- Connection method: Solder connection
- Rated voltage: 72VDC
- Rated current: 15A
- Degree of pollution: 2
- Ambient temperature: -40°C to 105°C
- Material: Copper alloy, gold-plated contact surface
- Dimensions: Width 18mm, Height 17.6mm, Length 17.1mm
- Test voltage: Core/Core 1000 V, Core/Shield 1500 V
- Standards: UL 94 VO flammability, IP20 protection
- Shock and vibration resistance: High
- Shielding: 360° with housing shield springs
- Mounting: PCB
- Protection class: IP20
Buy the Buy Phoenix Contact RJ45 Socket Insert Part Number 1099281 Online
Order the Phoenix Contact Ethernet Socket insert, model 1099281, online today to benefit from its robust design, high data speed of up to 10 Gbps, and exceptional resistance to shock and vibration. This IP20 protected device is ideal for demanding industrial environments, offering quick PCB mounting, reliable solder connection, and integrated LED status indicators. Ensure your network's performance and durability by purchasing this high-quality RJ45 connector online, supporting extended temperature ranges from -40°C to 105°C for resilient operation.
Buy Phoenix Contact 1099281 RJ45 socket insert now and ensure reliable high-speed Ethernet connectivity with excellent EMI shielding and industrial-grade durability.
Frequently Asked Questions
Where can I buy Phoenix Contact 1099281?
You can click on the BUY or RFQ button to purchase 1099281 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1099281?
You can download the 1099281 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1099281?
Phoenix Contact
