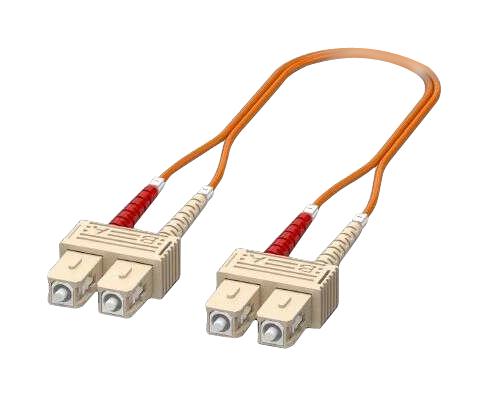

Phoenix Contact 1115534 fiber optic patch cable
This 3-meter multimode OM2 fiber optic patch cable features a duplex SC-SC connection with UPC polishing for reliable high-speed data transmission. Constructed from halogen-free, flame-retardant LSZH material, this orange cable is suitable for indoor fiber optics distribution and termination devices. It complies with IEC standards for performance and safety, including IEC 61300-3-4 and IEC 61300-3-6, and offers a robust design with an external diameter of 2.00 mm, resistance to typical environmental conditions, and flexibility for installation in demanding settings. Its weight is 5.30 kg/km, and it withstands over 500 insertion/withdrawal cycles, making it durable and dependable for industrial networks.
Phoenix Contact 1115534 fiber optic patch cable Specifications:
- Length of cable: 3.00 m
- Cable type: Multimode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Orange
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (Low Smoke Zero Halogen)
- Flammability rating: UL 94VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Ambient temperature (storage/transport): -20°C to 60°C
- Resistance to oil: Not resistant
- Concentration of fumes: IEC 61034 compliant
- Environmental compliance: China RoHS, 50-year Use Period
- Insertion/withdrawal cycles: ≥500
Buy the Phoenix Contact 1115534 – Reliable Fiber Optic Patch Cable for Industrial Applications
Order the Phoenix Contact fiber optic patch cable, 3 meters long with duplex SC connectors and UPC polishing, designed for indoor fiber network environments. Made from halogen-free, flame-retardant LSZH material, it offers excellent fire safety ratings with UL 94VO classification and complies with IEC standards IEC 61300-3-4 and IEC 61300-3-6. Its orange external sheath makes identification easy, while its robust construction provides over 500 insertion/withdrawal cycles, ensuring reliable performance in demanding industrial and telecommunications settings. Perfect for secure and high-speed data transmission.
Get Phoenix Contact 1115534 today—built for precision and long-lasting durability in demanding fiber optic networks.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115534?
You can click on the BUY or RFQ button to purchase 1115534 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115534?
You can download the 1115534 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115534?
Phoenix Contact
