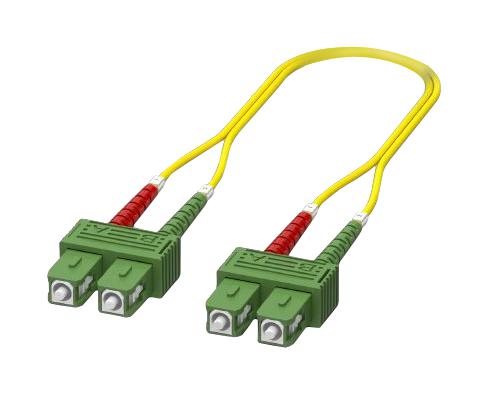

Phoenix Contact 1115540 Fiber Optic Patch Cable
This fiber optic patch cable features a duplex SC-SC connection with APC polishing for low insertion loss, designed for indoor fiber optic distribution. Made of halogen-free, flame-retardant LSZH material, it ensures safety and environmental compliance. With a length of 5 meters, it offers reliable single-mode OS2 fiber connectivity suitable for termination devices and installation environments requiring flexible, durable fiber optic links. Its high-quality construction supports over 500 insertion and withdrawal cycles, complying with IEC standards for optical performance and safety.
Phoenix Contact 1115540 Fiber Optic Patch Cable Specifications:
- Cable type: Single-mode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Yellow
- External cable diameter: 2.00 mm ±0.2 mm
- Cable length: 5.00 meters
- Cable weight: 5.30 kg/km
- Outer sheath material: LSZH
- Flammability rating: UL 94VO
- Standards: IEC 61300-3-4, IEC 61300-3-6
- Resistance to oil: Not resistant
- Fume concentration: In accordance with IEC 61034
- Environment compliance: RoHS, China RoHS, environmentally friendly for 50 years
- Ambient temperature (storage/transport): -20°C to 60°C
- Insertion/withdrawal cycles: ≥500
Buy the Buy Phoenix Contact FO Patch Cable Part Number 1115540 Online
Purchase the Phoenix Contact fiber optic patch cable with duplex SC connectors and APC polishing, ideal for indoor fiber distribution and termination. Its 5-meter length and single-mode OS2 fiber ensure high-quality, low-loss connections for critical optical networks. Constructed with halogen-free, flame-retardant LSZH material, it offers excellent safety and environmental features, complying with IEC standards. The cable supports over 500 insertion cycles, providing durability and longevity for fiber optic infrastructure requiring dependable and efficient performance in various indoor settings.
Buy Phoenix Contact FO Patch Cable 1115540 now and experience reliable high-performance fiber optic connections perfect for indoor distribution.
