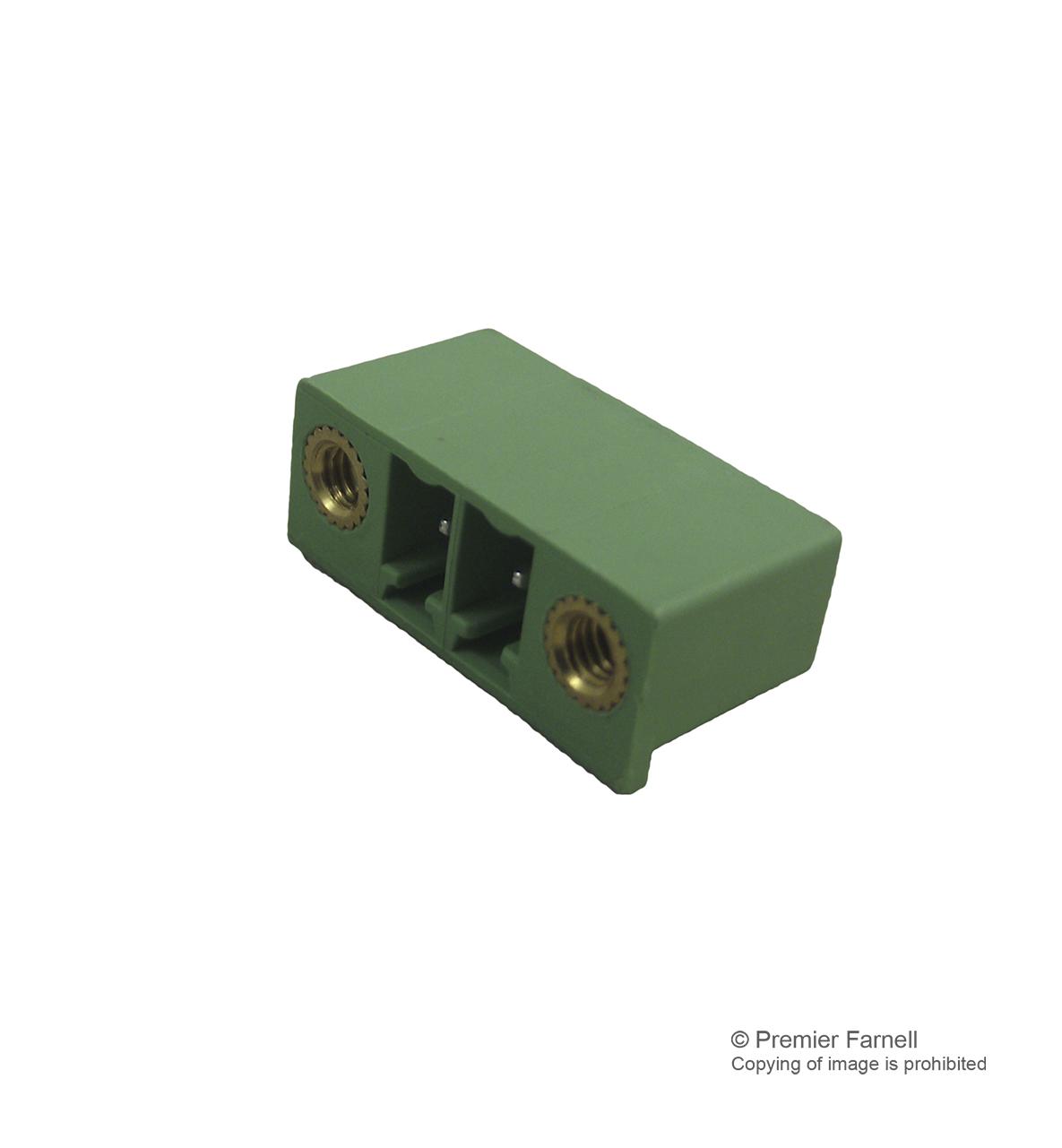

Phoenix Contact MCV152GF381LR Base Strip
The MCV 1.5/2-GF-3.81-LR is a versatile base strip for PCB connections, featuring two positions with a 3.81 mm pitch, green insulating material, and tin contact surfaces. It supports wave soldering and offers reliable mechanical stability through a screwable flange. With an rated current of 8 A and a rated voltage of 160 V, this component is suitable for various industrial and electronic device applications, providing flexibility in device design and easy multi-row arrangements on PCBs. It complies with standards like EN-VDE and UL 94 V-0 flammability rating.
Phoenix Contact MCV152GF381LR Base Strip Specifications:
- Number of positions: 2
- Pitch: 3.81 mm
- Length: 7.25 mm
- Hole diameter: 1.2 mm
- Pin dimensions: 0.8 x 0.8 mm
- Rated current: 8 A
- Rated voltage: 160 V (III/2), 250 V (II/2)
- Maximum load current: 8 A
- Insulating material: PBT, UL 94 V-0 flammability rating
- Contact surface: Tin
- Mounting: Wave soldering
- Color: Green
- Flammability rating: UL 94 V-0
- Dimensions: Length of solder pin 7.25 mm, pitch 3.81 mm
- Nominal surge voltage: 2.5 kV
- Material: PBT Insulating material
- Standards: EN-VDE, UL, cULus, EAC
- Approvals: VDE, cULus Recognized, EAC, IECEE CB Scheme
Buy the Phoenix Contact Series MCV Base Strip: MCV152GF381LR
Purchase the Phoenix Contact Series MCV152GF381LR base strip online today and enhance your electronic assembly with a reliable, easy-to-install PCB connection solution. Designed for versatile use, this base strip features 2 positions with a 3.81 mm pitch, supporting wave soldering and multi-row PCB arrangements. Made with durable PBT insulating material and tin contacts, it ensures excellent electrical performance and mechanical stability in industrial and electronic devices. Secure your supply chain by ordering this high-quality connector now for efficient and reliable PCB assembly.
Order your Phoenix Contact Series MCV152GF381LR base strip today and give your PCB connections the dependable quality they deserve.
