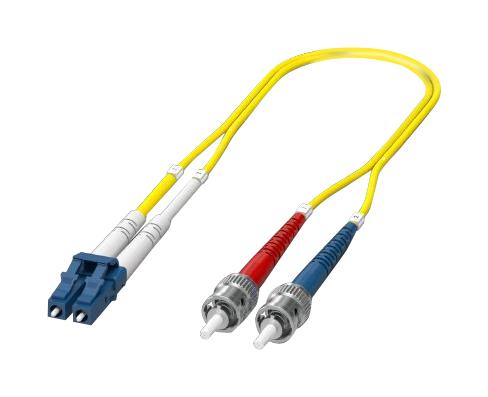

Phoenix Contact 1115592 Fiber Optic Patch Cable
This single-mode OS2 duplex patch cable with LC-ST connectors is 5 meters long. Made of halogen-free flame retardant material, it features an 8-shaped fiber optic design, suitable for indoor fiber optic distribution and termination. Compliant with IEC 61300 standards, it withstands 500 insertion cycles, has a UV-resistant external sheath, and meets UL 94V-0 flammability ratings. The yellow LSZH outer sheath ensures safety and environmental friendliness, with a typical weight of 5.30 kg/km and a diameter of 2.00 mm, making it ideal for high-performance fiber optic networks.
Phoenix Contact 1115592 Fiber Optic Patch Cable Specifications:
- Cable Length: 5.00 meters
- Fiber Type: Single-mode fiberglass
- Connectors: LC-ST, UPC polishing
- External Sheath Color: Yellow
- External Diameter: 2.00 mm
- Cable Weight: 5.30 kg/km
- Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
- Flammability Rating: UL 94V-0
- Resistance to Oil: Not resistant
- Standards/Regulations: IEC 61300-3-4, IEC 61300-3-6
- Ambient Temperature Range: -20°C to 60°C
- Number of Insertion/Withdrawal Cycles: 500
- Environmental Compliance: China RoHS 50 years use period
- Fume Concentration: IEC 61034
- Halogen-Free: Yes, according to IEC 60754-2
Buy the Phoenix Contact FOC-LC:PA-ST:PA-OS2:D01/5 – Reliable Fiber Optic Patch Cable for Industrial Applications
Order the Phoenix Contact fiber optic patch cable today to ensure high-quality, reliable indoor fiber optic connections. With a length of 5 meters, LC-ST connectors, and compliance with industry standards, this halogen-free LSZH cable offers exceptional performance. Its flame retardant properties, UV-resistant sheath, and environmental safety features make it ideal for demanding industrial and network applications. Invest in proven quality and upgrade your fiber optic infrastructure easily and securely by purchasing online now.
Buy Phoenix Contact FOC-LC:PA-ST:PA-OS2:D01/5 now and experience unmatched reliability and performance in fiber optic networking.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115592?
You can click on the BUY or RFQ button to purchase 1115592 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115592?
You can download the 1115592 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115592?
Phoenix Contact
