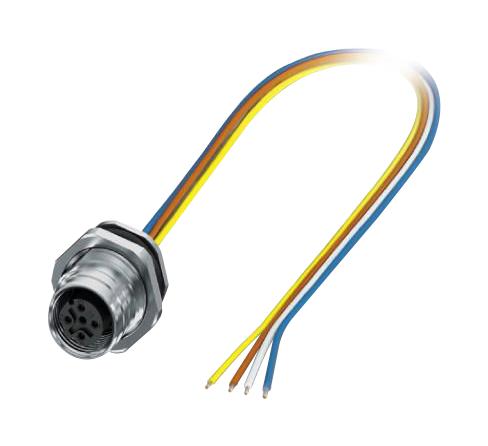

Phoenix Contact 1027670 Industrial M12 Connector
The flush-type connector with 4 positions features a robust M12 push-pull locking system, ensuring secure signal, data, and power transmission in industrial environments. Designed for rear mounting with M16 x 1.5 threading, it supports individual wiring with a cable length of 0.5 meters. The connector offers IP67 degree of protection, operates within -25°C to 85°C, and can withstand overvoltage up to 2.5 kV. Made of high-quality materials like brass with gold-plated contacts, it ensures reliable performance under extreme mechanical stress and harsh conditions.
Phoenix Contact 1027670 Industrial M12 Connector Specifications:
- Dimensions: Cable length 0.5 m, thread M16 x 1.5, contact material CuZn with Au surface, overall IP67 protection, operating temperature -25°C to 85°C, rated voltage 250 V, rated current 4A, surge voltage 2.5 KV, 4 positions, D-coded, individual wire connection, cable type TPE litz wire with 22 AWG, conductor cross section 0.34 mm², insulation thickness 0.21 mm, core diameter 1.2 mm, flammability UL 94 V-0, environmental compliance RoHS and REACH, recognized UL and cUL approved.
- Physical and technical specifications include: robust brass and nickel-plated components, gold-plated contacts for reliable signal transfer, sealing with NBR/FKM materials, operating temperature range from -40°C to 85°C for cables, and overvoltage category 3, ensuring durability and compliance in demanding industrial settings.
Buy the Phoenix Contact 1027670 – Reliable Signal and Power Connector for Industrial Applications
Experience seamless, secure signal, data, and power transmission with the Phoenix Contact M12 connector. Designed for tough industrial environments, it features IP67 protection, robust brass construction, gold-plated contacts, and easy rear mounting with M16 threading. With a cable length of 0.5 meters, rated at 4A and 250V, it ensures durable performance under extreme conditions. Perfect for automation, control systems, and industrial equipment, this connector guarantees reliable connections, simplifying installation and maintenance across various demanding applications. Order online now for fast delivery!
Order your Phoenix Contact Series1027670 durable M12 connector today and give your industrial projects the dependable connection they need for optimal performance.
Frequently Asked Questions
Where can I buy Phoenix Contact 1027670?
You can click on the BUY or RFQ button to purchase 1027670 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1027670?
You can download the 1027670 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1027670?
Phoenix Contact
