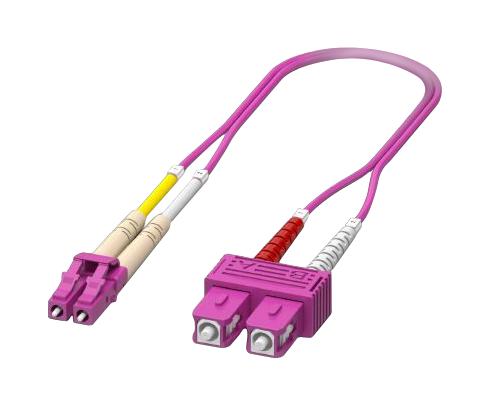

Phoenix Contact 1115600 fiber optic patch cable
This fiber optic patch cable seamlessly connects multimode OM4 fibers with LC and SC connectors, ideal for indoor fiber distribution and termination. Made of halogen-free flame-retardant material, it features UPC polishing and a 2-meter length, supporting over 500 insertion/withdrawal cycles. The cable has a violet LSZH outer sheath, diameter of 2.00 mm, and complies with IEC 60754-2 and IEC 61034 standards. Designed for high performance, durability, and safety in fiber optic networking environments, it is suitable for modern communication infrastructure requiring reliable, flexible connections.
Phoenix Contact 1115600 fiber optic patch cable Specifications:
- Cable Length: 2.00 m
- Cable Diameter: 2.00 mm
- Cable Weight: 5.30 kg/km
- External Sheath Color: Violet
- Outer Sheath Material: LSZH (halogen-free)
- Fiber Type: Multimode fiberglass
- Cable Structure: Figure 8 cable
- Flammability Rating: UL 94 VO
- Ambient Temperature (Storage/Transport): -20°C to 60°C
- Insertion/Withdrawal Cycles: > 500
- Standards Compliance: IEC 60754-2 (Halogen-free), IEC 61034 (Fume concentration)
- Resistance: Not resistant to oil, gasoline, acids, and lyes
- Environmental Use Period: 50 years
- RoHS Compliant: Yes
- Certification: CE, UL
Buy the Phoenix Contact Series Fiber Optic Patch Cable: 1115600
Enhance your fiber optic network with this high-quality multimode OM4 patch cable featuring LC and SC connectors. Suitable for indoor use, it boasts a durable, halogen-free LSZH outer sheath and UPC polishing for optimal signal clarity. The 2-meter length provides flexible installation options, and the cable supports over 500 insertion cycles for long-term reliability. Compliant with IEC standards, it ensures safety, flame retardancy, and environmental friendliness, making it an essential component for modern communication and data transfer infrastructure.
Buy Phoenix Contact fiber optic patch cable 1115600 now and experience unmatched reliability and high-performance indoor fiber connections.
