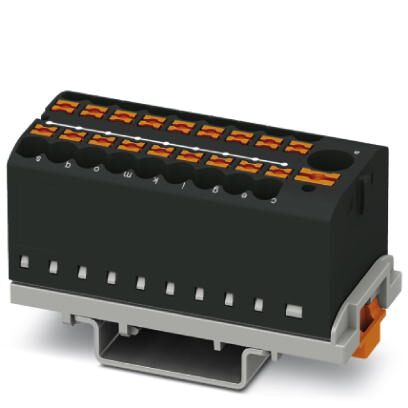

Phoenix Contact 3273124 Distribution Block
This distribution block designed by Phoenix Contact offers versatile connection options with push-in technology, high voltage and current ratings, and a compact black profile. Suitable for industrial automation, it features a 690 V nom. voltage and 24 A nom. current capacity, with multiple connections and robust UL 94V-0 insulating material. The block supports flexible wiring with conductor cross sections from 0.14 mm² to 4 mm², ensuring efficient, tool-free installation in control panels or machinery. It is compatible with various DIN rail sizes and includes accessories for custom assembly and maintenance.
Phoenix Contact 3273124 Distribution Block Specifications:
- Nominal voltage: 690 V
- Nominal current: 24 A
- Connection method: Push-in connection
- Number of connections: 19
- Connection cross section: 0.14 mm² - 4 mm² (AWG 26 - 12)
- Width: 28.6 mm
- Color: Black
- Insulating material: PA (UL 94V-0)
- Rated surge voltage: 8 kV
- Ambient temperature (operation): ~60°C to 85°C
- Height NS 35/7.5: 32.4 mm
- Height NS 15: 30.4 mm
- Length: 58.1 mm
- Degree of pollution: 3
- Certifications: UL Recognized, CSA, VDE, EAC, IEC standards
- Connection in accordance with IEC 60947-7-1
- Material: Steel, galvanized, passivated; also available in Aluminum and Copper options
- Flammability rating: UL 94 V-0
- Support for assembly: DIN rail, direct mounting, adhesive mounting
- Accessories include: End caps, perforated or unperforated rails, insulating sleeves, bridges, marker cards, and test plugs
Buy the Phoenix Series Distribution Block: 690V 24A Push-In Connection 3273124
Enhance your control systems with the Phoenix Contact Distribution Block. Featuring push-in connection technology, high voltage capacity, and compact design, it allows quick, tool-free wiring and modular assembly. Suitable for DIN rail mounting and various accessories, this versatile component supports up to 690 V and 24 A, ensuring safe operation in demanding environments. Perfect for automation and electrical control applications, it simplifies installation and maintenance, boosting efficiency and reliability in your projects.
Order your Phoenix Distribution Block 3273124 today and give your industrial automation projects reliable, high-quality connection solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact 3273124?
You can click on the BUY or RFQ button to purchase 3273124 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3273124?
You can download the 3273124 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3273124?
Phoenix Contact
