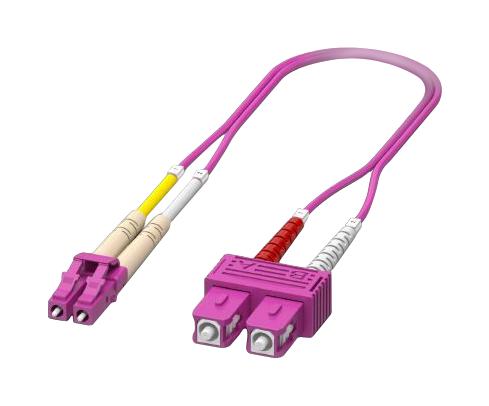

Phoenix Contact 1115601 fiber optic jumper
This OM4 duplex fiber optic jumper features LC to SC connectors with UPC polishing, designed for indoor fiber optics distribution and termination. Made of halogen-free, flame retardant material, it offers high durability with over 500 insertion cycles. The fiber cable has a length of 1 meter, with a violet-colored LSZH outer sheath, and a 2.00 mm diameter. Suitable for high-performance multimode applications, it complies with RoHS and IEC standards, ensuring safety, environmental compliance, and reliable data transmission in network infrastructures.
Phoenix Contact 1115601 fiber optic jumper Specifications:
- Cable type: Multimode fiberglass
- Cable structure: Figure 8 cable
- Length: 1.00 m
- External sheath color: Violet
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (halogen-free), flame retardant according to UL 94 VO
- Ambient temperature: -20°C to 60°C
- Insertion/withdrawal cycles: > 500
- Resistance to oil: Not resistant
- Fume concentration: IEC 61034
- Flammability rating: UL 94 VO
- Standards: IEC 60754-2, IEC 61034, RoHS
- Classification: eCl@ss 8.0 27061801, 9.0 27061003, ETIM EC001578
Buy the Phoenix Contact Series OM4 Fiber Optic Cable Jumper: 1115601
Enhance your network with this high-quality OM4 duplex fiber optic jumper. Electric and fire-safe, it features LC to SC connectors, 1-meter length, and a violet LSZH sheath, suitable for indoor fiber distribution. Made from halogen-free, flame-retardant material, it supports over 500 insertion cycles, ensuring longevity and reliable performance. Compliant with IEC and RoHS standards, this fiber jumper is ideal for high-capacity data centers and telecommunications setups, providing durable, safe, and efficient connectivity for critical applications.
Get Phoenix Contact OM4 fiber optic jumper 1115601 today—optimized for high-speed data transfer and indoor fiber optic installations.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115601?
You can click on the BUY or RFQ button to purchase 1115601 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115601?
You can download the 1115601 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115601?
Phoenix Contact
