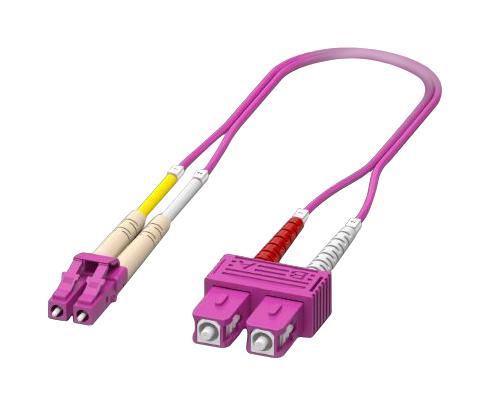

Phoenix Contact 1115602 Fiber Optic Patch Cable
This fiber optic patch cable features multi-mode OM4 fibers with LC and SC connectors, suitable for indoor use in fiber distribution and termination. Made of halogen-free, flame-retardant material, it supports over 500 insertion cycles, ensuring reliable performance. The cable has a violet external sheath, with a diameter of 2.00 mm, and a weight of 5.30 kg/km. Designed to meet UL 94 VO flammability standards and IEC regulations, it offers high durability, environmental compliance, and resistance to physical wear, making it ideal for high-speed data transmission environments.
Phoenix Contact 1115602 Fiber Optic Patch Cable Specifications:
- Cable Length: 0.50 m
- Cable Type: Multimode fiberglass
- Cable Structure: Figure 8 cable
- External Sheath Color: Violet
- External Diameter: 2.00 mm
- Cable Weight: 5.30 kg/km
- Material: LSZH, halogen-free
- Flammability Rating: UL 94 VO
- Resistance: Not resistant to oil, gasoline, acids, and lyes
- Ambient Temperature: -20°C to 60°C
- Insertion/Withdrawal Cycles: > 500
- Standards: IEC 60754-2 (Halogen-free), IEC 61034 (Fume concentration)
Buy the Phoenix Contact Series FO Patch Cable: FOC-LC:PA-SC:PA-OM4:D01/0.5
Order the Phoenix Contact fiber optic patch cable today for reliable, high-speed data connectivity. This OM4 multi-mode cable with LC and SC connectors is designed with a violet LSZH sheath for indoor fiber distribution. Its high durability, resistance to wear, and compliance with international standards ensure optimal performance in demanding environments. Perfect for fiber optic networks requiring fast, efficient, and safe connections, this cable offers excellent flexibility, long-lasting performance, and environmentally friendly materials, making it an essential component for modern communication infrastructures.
Get Phoenix Contact FOC-LC:PA-SC:PA-OM4:D01/0.5 today—built for high-speed data transmission and durability.
Frequently Asked Questions
Where can I buy Phoenix Contact 1115602?
You can click on the BUY or RFQ button to purchase 1115602 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1115602?
You can download the 1115602 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1115602?
Phoenix Contact
