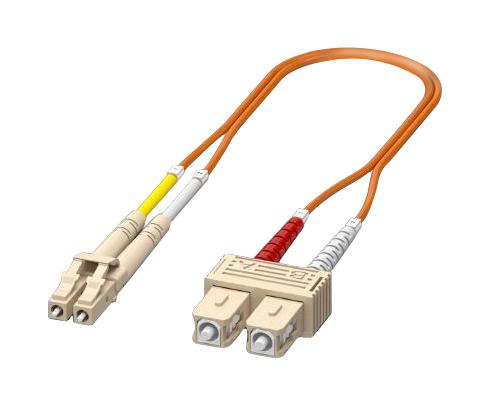

Phoenix Contact 1115603 Fiber Optic Patch Cable
This fiber optic patch cable is designed for indoor use, featuring an 8-shaped multimode fiberglass cable with a length of 5 meters. Made from halogen-free, flame-retardant LSZH material, it complies with IEC 60754-2 and UL 94 VO flammability rating. Suitable for fiber optic distribution and termination, it resists environmental factors like temperature variations from -20°C to 60°C but is not oil-resistant. The cable offers over 500 insertion/withdrawal cycles and weighs 5.30 kg/km, making it ideal for reliable, safe fiber network connections.
Phoenix Contact 1115603 Fiber Optic Patch Cable Specifications:
- Cable length: 5.00 m
- Cable type: Multimode fiberglass
- Cable structure: Figure 8 cable
- External sheath color: Orange
- External cable diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH (halogen-free, flame retardant)
- Flammability rating: UL 94 VO
- Resistance to oil: Not resistant
- Fume concentration: IEC 61034
- Ambient temperature: -20°C to 60°C
- Insertion/withdrawal cycles: > 500
- Standards: IEC 60754-2, UL 94 VO, IEC 61034
- Environmental compliance: China RoHS, environmentally friendly for 50 years
Buy the Phoenix Contact Series FO Patch Cable: FOC-LC:PA-SC:PA-OM2:D01/5
Enhance your fiber optic network with this high-quality patch cable from Phoenix Contact. Designed for indoor use, it features a 5-meter length of multimode fiberglass with an orange LSZH sheath, ensuring safety and durability. The cable is halogen-free, flame retardant, and compliant with IEC and UL standards. With over 500 insertion/withdrawal cycles, it provides reliable connections for fiber optic distribution and termination. Buy online now and experience seamless, safe, and eco-friendly fiber solutions for your projects.
Order your Phoenix Contact Series FO Patch Cable FOC-LC:PA-SC:PA-OM2:D01/5 today and ensure reliable fiber optic connectivity for your indoor network solutions.
