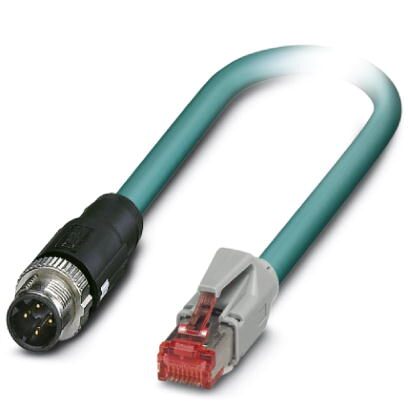

Phoenix Contact 1406127 Ethernet Network Cable
The PHOENIX CONTACT NBC-MSD/ 2,0-93E/R4AC SCO US network cable is a robust solution for industrial Ethernet connectivity. It combines a shielded M12 connector (IP67 rated) for reliable power and data transmission with a standard RJ45 connector (IP20 rated) for compatibility with existing infrastructure. The cable is constructed with a PUR outer sheath, offering excellent resistance to oil and harsh environments, and features a shielded design to minimize interference. Ideal for applications requiring secure and dependable network connections in industrial automation, machinery, and control systems.
Phoenix Contact 1406127 Ethernet Network Cable Specifications:
- Packing unit: 1 PCE
- GTIN: None
- Custom tariff number: 85444210
- Country of origin: GERMANY
- Length of cable: 2 m
- Rated current at 40°C: 1 A
- Rated voltage: 50 V
- Number of positions: 4
- Signal type/category: Ethernet CAT5 (IEC 11801:2002)
- Standards/regulations: M12 plug-in connector IEC 61076-2-101
- Degree of protection (M12 plug-in connector): IP67
- Degree of protection (RJ45 plug-in connector): IP20
- Coding: D (Data)
- Cable type: Ethernet
- Cable type (abbreviation): 93E
- UL AWM style: 20963 (80°C/30 V)
- Cable structure: 2x2xAWG26/7; SF/UTP
- Conductor cross section: 2x 2x 0.14 mm²
- AWG signal line: 26
- Conductor structure signal line: 7x 0.16 mm
- Core diameter including insulation: 0.98 mm
- Wire colors: white/orange-orange, white/green-green
- Twisted pairs: 2 cores to the pair
- Overall twist: Two pairs with two fillers to the core
- Shielding: Aluminum-coated foil, tinned copper braided shield
- Optical shield covering: 70 %
- External sheath, color: water blue RAL 5021
- External cable diameter D: 6.4 mm ± 0.2 mm
- Minimum bending radius, fixed installation: 4 x D
- Minimum bending radius, flexible installation: 8 x D
- Tensile strength short-term/long-term: ≤ 80N
- Cable weight: 42 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: Foamed PE
- Conductor material: Bare Cu litz wires
- Insulation resistance: ≥ 500 MΩ*km (at 20 °C)
- Conductor resistance: ≤ 290 Ω/km (at 20 °C)
- Working capacitance: 45 nF (At 1 kHz)
- Wave impedance: 100 Ω ± 5 Ω (At 100 MHz)
- Signal runtime: 5.3 ns/m
- Nominal voltage, cabel: 300 V (Outer cable sheath)
- Test voltage Core/Core: 700 V (50 Hz, 1 min.)
- Test voltage Core/Shield: 700 V (50 Hz, 1 min.)
- Flame resistance: IEC 60332-1-2
- Halogen-free: According to IEC 60754-1
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Ambient temperature (operation, fixed): -40 °C ... 80 °C
- Ambient temperature (operation, flexible): -20 °C ... 80 °C
- Ambient temperature (installation): -20 °C ... 80 °C
- Ambient temperature (storage/transport): -20 °C ... 80 °C
- ETIM 3.0: EC001855
- ETIM 4.0: EC001855
- ETIM 5.0: EC001855
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
