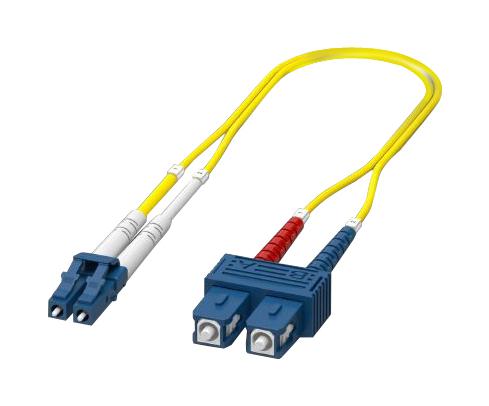

Phoenix Contact 1115616 Fiber Optic Jumper
This single-mode OS2 duplex fiber optic jumper cable measures 3 meters in length and features LC and SC connectors with UPC polishing. Designed for indoor use, it is ideal for fiber optic distribution and termination applications. Made of halogen-free, flame-retardant material, the cable is compliant with RoHS standards and withstands over 500 insertion and withdrawal cycles. The cable has a yellow LSZH outer sheath with an external diameter of 2.00 mm, ensuring safety and environmental friendliness. Suitable for high-precision fiber optics networks, it provides low attenuation and reliable connections in demanding conditions.
Phoenix Contact 1115616 Fiber Optic Jumper Specifications:
- Cable length: 3.00 meters
- Cable type: Single-mode fiberglass
- Connector type: LC and SC, UPC polishing
- External sheath color: Yellow
- External diameter: 2.00 mm
- Cable weight: 5.30 kg/km
- Material: LSZH, halogen-free
- Flammability rating: UL 94 VO
- Ambient temperature: -20°C to 60°C
- Resistance: Over 500 insertion/withdrawal cycles
- Standards: IEC 60754-2, IEC 61034
- Environmental: RoHS compliant, environmentally friendly with a 50-year use period
- Resistance: Not resistant to oil, gasoline, acids, and lyes
- Fire behavior: No corrosive or toxic fumes during combustion
Buy the Buy Phoenix Contact Fiber Optic Jumper Part Number 1115616 Online
Capitalize on high performance with this 3-meter single-mode fiber optic jumper featuring LC and SC connectors. Crafted from halogen-free LSZH material, it offers excellent flame retardant properties and low attenuation suitable for precise indoor fiber optic setups. It withstands over 500 insertion cycles, ensuring long-lasting reliability. Its yellow external sheath ensures visibility, and the cable complies with IEC and UL standards, making it an ideal choice for fiber distribution, termination, and high-density network environments. Purchase online for quick, secure delivery.
Get Phoenix Contact fiber optic jumper 1115616 today—designed for high durability and low signal loss in indoor fiber networks.
