Phoenix Contact 1522590 Sensor/Actuator Cable

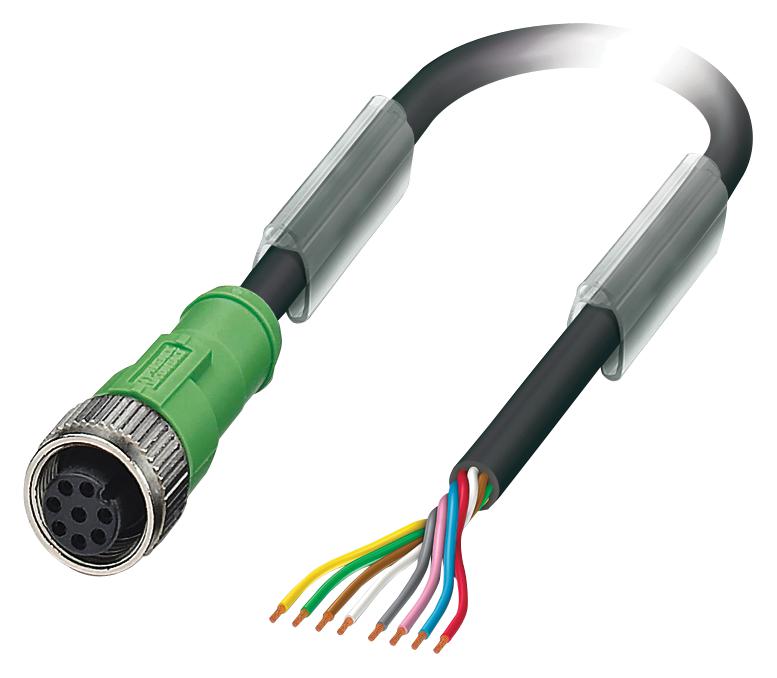

The SAC-8P-1,5-PUR/M12FS is a high-quality sensor and actuator cable designed for industrial automation with 8 conductive pins, equipped with a robust, halogen-free PUR outer sheath. It features an M12 connector, A-coded, with a straight socket, suitable for secure connections in harsh environments with an IP65/IP67/IP68 degree of protection. The cable has a length of 1.5 meters, flexible, flame-resistant, oil-resistant, UV resistant, and capable of withstanding high ambient temperatures ranging from -25°C to 80°C. It ensures reliable signal transfer and durability in demanding applications.
Phoenix Contact 1522590 Sensor/Actuator Cable Specifications:
- Number of positions: 8
- Cable type: PUR halogen-free, black-gray RAL 7021
- Cable length: 1.5m
- Outer sheath thickness: approx. 0.8 mm
- Outer diameter: 5.9 mm +0.15 mm
- Bending radius fixed: 8xD; flexible: 10xD
- Temperature range (operation): -25°C to 80°C
- Operating temperature (plug/socket): -25°C to 90°C
- Rated current: 2A at 40°C
- Rated voltage: 30V
- Flame resistance: UL 94 HB
- Conductor cross section: 8 x 0.25 mm²
- Conductor resistance: <78 Ω/km
- Insulation: PP
- Cable construction: 8 wires, twisted around filler, external sheath black-gray
- Compliance: UL, cUL, EAC, compliant with IEC 61076-2-101 standards
- Environmental Resistance: UV, hydrolysis, acids, alkaline solutions, solvents, low adhesion, abrasion resistant
- Connection: M12 connector, IEC standard
Buy the Buy Phoenix Contact Sensor/Actuator Cable SAC-8P- 1,5-PUR/M12FS Online
Order the Phoenix Contact SAC-8P-1,5-PUR/M12FS sensor and actuator cable online now for dependable performance in industrial automation. This robust 8-pin connector cable features halogen-free PUR insulation, offering flexibility, flame resistance, and high resistance to oils and UV exposure. With a 1.5-meter length and an IP65/IP67/IP68 degree of protection, it ensures secure signal transmission even in harsh environments. Ideal for industrial machinery, automation systems, and sensor connections, this cable guarantees long-lasting performance and reliable operation in demanding applications.
Get Phoenix Contact SAC-8P- 1,5-PUR/M12FS today—designed for durability, flexibility, and reliable industrial connectivity.
Frequently Asked Questions
Where can I buy Phoenix Contact 1522590?
You can click on the BUY or RFQ button to purchase 1522590 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1522590?
You can download the 1522590 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1522590?
Phoenix Contact
