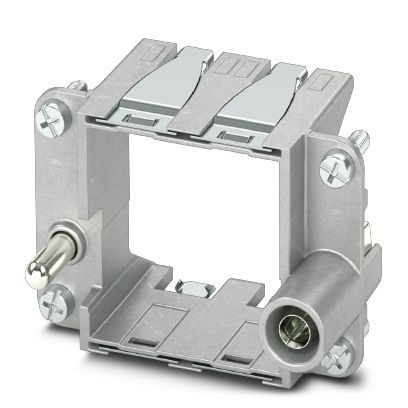

Phoenix Contact 1182085 Module Carrier Frame
The Phoenix Contact HC-M-B06-MFH-B module carrier frame provides a robust and versatile solution for connecting modules in industrial applications. Designed with a B6 size and intended for panel mounting, it supports conductors ranging from 4 to 6 mm² for the power side and 1 to 2.5 mm² for the control side. The frame incorporates two module slots, allowing for flexible configuration and expansion. It is compatible with HC-MHR-PE16 for PE connection extension and utilizes die-cast zinc alloy for durability. This component is a replacement for part 1417398 and is designed for secure and efficient module integration in various industrial settings.
Phoenix Contact 1182085 Module Carrier Frame Specifications:
- Packing unit: 1 pc
- GTIN: 4063151218737
- Weight per Piece (excluding packing): 60.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 36 mm
- Width: 34.9 mm
- Length: 51 mm
- Ambient temperature (operation): -40 °C ... 125 °C
- Conductor cross section (power side): 4 mm² ... 6 mm²
- Conductor cross section (control side): 1 mm² ... 2.5 mm²
- Connection cross section AWG (power side): 12 ... 10
- Connection cross section AWG (control side): 18 ... 14
- Tightening torque (power side): 0.8 Nm ... 1.2 Nm
- Tightening torque (control side): 0.5 Nm ... 0.8 Nm
- Insertion/withdrawal cycles: ≥ 500
- Note: This product replaces 1417398 HC-M-B06-MF-B
- Type: for the panel mounting side (a, b, c, ...)
- Size: B6
- Series: HC-M-B
- Color: silver
- Number of module slots: 2
- Assembly instructions (PE connection): HC-MHR-PE16 ( 1636981)
- Connection: Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm
- Contact carrier material: Die-cast zinc alloy
- China RoHS: Environmentally Friendly Use Period = 50 years
