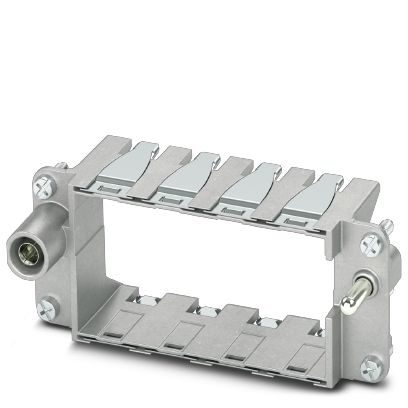

Phoenix Contact 1182093 Module Carrier Frame
The Phoenix Contact HC-M-B16-MFH-H module carrier frame is a crucial component in modular connection systems, particularly within industrial automation and control panels. Designed for the sleeve side (A, B, C, ...), this frame provides a secure and organized platform for connecting multiple modules. It supports conductor cross-sections ranging from 4 to 6 mm² for the power side and 1 to 2.5 mm² for the control side, ensuring compatibility with a wide range of wiring configurations. The frame's robust die-cast zinc alloy construction guarantees durability and reliable performance in demanding environments. With 4 module slots, it offers flexibility in system design and expansion. It replaces the 1417405 HC-M-B16-MF-H, offering a direct upgrade path for existing installations. Its compatibility with accessories like coding elements and cable lugs further enhances its versatility and ease of integration into complex systems.
Phoenix Contact 1182093 Module Carrier Frame Specifications:
- Packing unit: 1 pc
- GTIN: 4063151218577
- Weight per Piece (excluding packing): 80.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 36 mm
- Width: 34.9 mm
- Length: 84.5 mm
- Ambient temperature (operation): -40 °C ... 125 °C
- Conductor cross section (power side): 4 mm² ... 6 mm²
- Conductor cross section (control side): 1 mm² ... 2.5 mm²
- Connection cross section AWG (power side): 12 ... 10
- Connection cross section AWG (control side): 18 ... 14
- Tightening torque (power side): 0.8 Nm ... 1.2 Nm
- Tightening torque (control side): 0.5 Nm ... 0.8 Nm
- Insertion/withdrawal cycles: ≥ 500
- Note: Replaces 1417405 HC-M-B16-MF-H
- Type: for the sleeve side (A, B, C, ...)
- Size: B16
- Series: HC-M-B
- Color: silver
- Number of module slots: 4
- Assembly instructions: HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm²
- Connection: Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm
- Contact carrier material: Die-cast zinc alloy
- China RoHS: Environmentally Friendly Use Period = 50 years
- eCl@ss 10.0.1: 27440206
- eCl@ss 11.0: 27440206
- eCl@ss 9.0: 27440206
