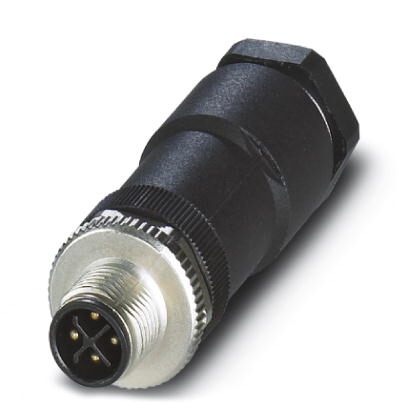

Phoenix Contact 1404641 M12 Power Connector
This 4-position straight M12 power connector with S-coded screw connection is built with zinc die-cast, nickel-plated knurled nut, ensuring durability and corrosion resistance. It features a PG11 cable gland suitable for cable diameters of 8 mm to 10 mm, providing a secure and sealed connection. The connector is designed for AC power applications, capable of handling up to 12 A at 630 V, with four contacts for efficient power transmission. Its robust construction and IP67 degree of protection make it ideal for industrial environments and field use.
Phoenix Contact 1404641 M12 Power Connector Specifications:
- Material: Zinc die-cast, nickel-plated knurled nut
- Cable gland: PG11, suitable for cable diameters 8 mm to 10 mm
- Rated Current: Up to 12 A
- Voltage: 630 V AC
- Number of Positions: 4
- Degree of Protection: IP67
- Ambient Temperature: -40 °C ... 85 °C
- Wire Length for Conductors: 20 mm with ferrule, stripping length 6 mm
- Mounting Torque: 0.2 Nm
- Standards: IEC 61076-2-111
- Connector Type: Straight, shielded
- Approval: UL Recognized, cUL Recognized, EAC
- Application: Power transmission in industrial settings
- Connector Type: M12, S-coded, screw connection
Buy the Buy Phoenix Contact Power Connector Part Number 1404641 Online
Purchase the Phoenix Contact M12 Power Connector 1404641 online today for a robust and reliable solution that ensures efficient power transmission in industrial environments. Featuring a zinc die-cast, nickel-plated chassis, and a PG11 cable gland, this connector is rated for up to 12 A at 630 V, with IP67 protection against dust and water ingress. Its screw connection technology offers secure, straightforward installation, making it ideal for field use and demanding industrial applications. Get yours now for dependable performance and ease of setup.
Order your Phoenix Contact Power Connector 1404641 today and ensure a reliable, IP67-rated solution for industrial power needs and field applications.
