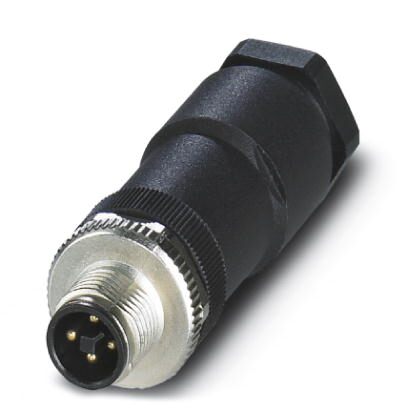

Phoenix Contact 1404643 Power Connector
This 4-position unshielded power connector features a straight M12 plug with T-coding, screw termination, and a nickel-plated zinc die-cast body. It includes a Pg11 cable gland compatible with cable diameters from 8 mm to 10 mm, making installation straightforward and secure. Designed for direct current applications, the connector supports up to 12 A at 60 V, with four contacts ensuring reliable electrical connections. It offers IP67 protection for harsh environments, high operational temperature range from -40°C to 85°C, and compliance with IEC 61076-2-111 standards, making it suitable for industrial automation and power systems.
Phoenix Contact 1404643 Power Connector Specifications:
- Number of Positions: 4
- Connector Type: M12 straight plug, T-coded
- Housing Material: Nickel-plated zinc die-cast
- Cable Gland: Pg11, suitable for cables 8-10 mm in diameter
- Electrical Rating: Up to 12 A at 60 V DC
- Protection Class: IP67
- Operating Temperature: -40°C to +85°C
- Standards: IEC 61076-2-111
- Connection Technology: Screw termination with torque of 0.2 Nm
- Ambient conditions: Suitable for industrial environments
- Dimensions: Not specified, typical M12 connectivity components
- Mounting and assembly: Field-installable, flexible for onsite wiring
Buy the Buy Phoenix Contact M12 Power Connector Part Number 1404643 Online
Purchase the Phoenix Contact power connector online today for reliable and secure electrical connections in industrial settings. Designed with a nickel-plated zinc body, IP67 protection, and a Pg11 gland, this connector supports up to 12 A and 60 V DC, ensuring excellent performance. Easy to install with screw termination technology, it is ideal for automation and power distribution systems. Order now to benefit from high-quality, durable components that meet industry standards and are built for demanding environments.
Get Phoenix Contact 1404643 today—built for precision and long-lasting durability in industrial power and automation applications.
