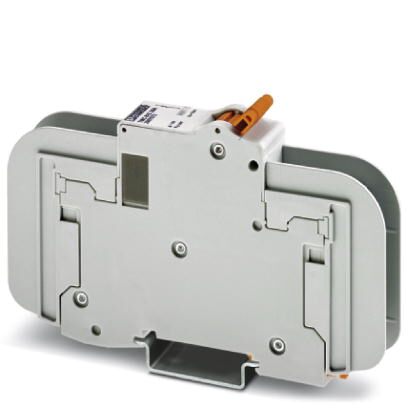

Phoenix Contact 2907638 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 81D 15A thermomagnetic device circuit breaker provides reliable overcurrent protection in a compact design. Designed for DIN rail mounting on 35mm rails, this circuit breaker features a 15A rated current and a 10kA short-circuit switching capacity, ensuring robust protection for electrical circuits. It is suitable for applications in industrial control panels, power distribution systems, and other electrical installations where overcurrent protection is critical. The device is UL Listed, cUL Listed, and cULus Listed, confirming its compliance with recognized safety standards. Its compact size and ease of installation make it a versatile solution for a wide range of electrical protection needs.
Phoenix Contact 2907638 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail: 35 mm
- Color: gray
- Number of positions: 1
- Operating voltage: 120 V AC (277 V AC), 60 V DC
- Rated current IN: 15 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 17.6 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Standards and Regulations: UL 489 IEC 60947-2
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- eCl@ss 9.0: 27141116
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- ETIM 6.0: EC000899
- ETIM 7.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121620
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 150.000 g
- Country of origin: China
Buy the 2907638 PHOENIX CONTACT Thermomagnetic Device Circuit Breaker | myMectronic
Purchase the Phoenix Contact 2907638 Thermomagnetic Device Circuit Breaker securely online for reliable overcurrent protection.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 2907638?
You can click on the BUY or RFQ button to purchase 2907638 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2907638?
You can download the 2907638 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2907638?
Phoenix Contact
