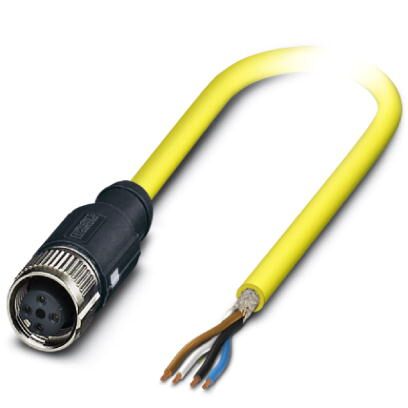

Phoenix Contact 1406188 4-Position Sensor Cable
The PHOENIX CONTACT SAC-4P-5,0-542/FS SH SCO BK is a 4-position sensor/actuator cable designed for reliable data transmission in industrial environments. It incorporates an M12 SPEEDCON connector for secure and robust connections, a shielded PVC cable for noise reduction, and is suitable for a wide range of automation and control applications. The cable's robust construction and shielding ensure consistent performance even in demanding conditions.
Phoenix Contact 1406188 4-Position Sensor Cable Specifications:
- Length of cable: 5 m
- Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 250 V
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PVC yellow 105 °C
- Cable type (abbreviation): 542
- UL AWM style: 2517 (105°C/300 V)
- AWG signal line: 22
- Core diameter including insulation: 1.27 mm ±0.03 mm
- Wire colors: brown, blue, black, white
- Overall twist: 4 wires, twisted
- Shielding: Tinned copper braided shield
- Optical shield covering: 85 %
- External sheath, color: yellow
- External cable diameter D: 5.5 mm ±0.2 mm
- Minimum bending radius, flexible installation: 12 x D
- Cable weight: 48 kg/km
- Outer sheath, material: PVC
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Insulation resistance (cable): ≥ (550 M Ohms/m @ 500V)
- Conductor resistance: max. 50.5 Ω/km (20° C)
- Nominal voltage, cable: 300 V
- Special properties: UL standards PLTC and ITC
- Other resistance: UV resistant
- Ambient temperature (operation) (cable): -30 °C ... 105 °C (cable, fixed installation)
