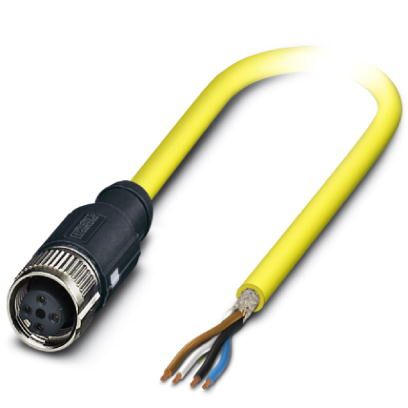

Phoenix Contact 1406189 4-Position Sensor Cable
The PHOENIX CONTACT SAC-4P-2,0-542/FS SH SCO BK cable is a robust and reliable solution for connecting sensors and actuators in industrial environments. It incorporates a 4-position M12 connector, providing a secure and standardized connection. The shielded PVC cable ensures signal integrity and minimizes interference, making it suitable for demanding applications such as automated machinery, robotic systems, and process control. Its durable construction and robust materials ensure long-term performance and reliability.
Phoenix Contact 1406189 4-Position Sensor Cable Specifications:
- Length of cable: 2 m
- Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 250 V
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PVC yellow 105 °C
- Cable type (abbreviation): 542
- UL AWM style: 2517 (105°C/300 V)
- AWG signal line: 22
- Core diameter including insulation: 1.27 mm ±0.03 mm
- Wire colors: brown, blue, black, white
- Overall twist: 4 wires, twisted
- Shielding: Tinned copper braided shield
- Optical shield covering: 85 %
- External sheath, color: yellow
- External cable diameter D: 5.5 mm ±0.2 mm
- Minimum bending radius, flexible installation: 12 x D
- Cable weight: 48 kg/km
- Outer sheath, material: PVC
- Material conductor insulation: PVC
- Conductor material: Tin-plated Cu litz wires
- Insulation resistance (cable): ≥ (550 M Ohms/m @ 500V)
- Conductor resistance: max. 50.5 Ω/km (20° C)
- Nominal voltage, cable: 300 V
- Special properties: UL standards PLTC and ITC
- Other resistance: UV resistant
- Ambient temperature (operation) (cable): -30 °C ... 105 °C (cable, fixed installation)
