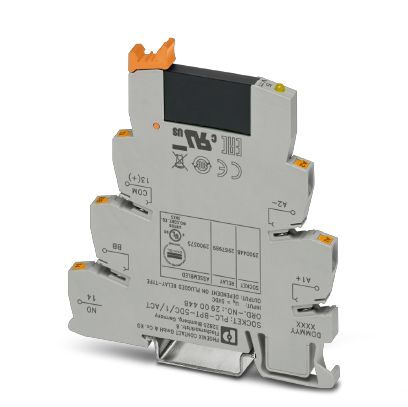

Phoenix Contact PLCOPT5DC24DC2ACT Solid-State Relay Module
The Phoenix Contact PLC-OPT- 5DC/ 24DC/2/ACT solid-state relay module is designed for seamless integration into PLC systems. It combines a PLC-BPT basic terminal block with a plug-in miniature solid-state relay, offering significant time savings and space optimization. The module's direct actuator connection simplifies wiring, while its safe isolation ensures reliable operation. Suitable for DIN rail mounting, this module is ideal for industrial automation, control systems, and machine building applications where efficient and reliable switching is required. Its compact design and functional plug-in bridges further enhance its versatility.
Phoenix Contact PLCOPT5DC24DC2ACT Solid-State Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 36.0 g
- Custom tariff number: 85364190
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Nominal input voltage UN: 5 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Switching threshold "0" signal in reference to UN: ≤ 0.25
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 9.5 mA
- Typical response time: 20 µs (at UN)
- Typical turn-off time: 300 µs (at UN)
- Operating voltage display: Yellow LED
- Type of protection (input): Protection against polarity reversal
- Protective circuit/component (input): Polarity protection diode
- Transmission frequency: 300 Hz
- Output voltage range: 3 V DC ... 33 V DC
- Limiting continuous current: 3 A (see derating curve)
- Maximum inrush current: 15 A (10 ms)
- Voltage drop at max. limiting continuous current: ≤ 200 mV
- Output circuit: 2-wire, floating
- Type of protection (output): Protection against polarity reversal
- Protective circuit/component (output): Polarity protection diode
- Connection name (input): Input side
- Connection method (input): Push-in connection
- Stripping length (input): 8 mm
- Conductor cross section solid (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 26 ... 14
- Connection name (output): Output side
- Connection method (output): Push-in connection
- Stripping length (output): 8 mm
- Conductor cross section solid (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 26 ... 14
- Test voltage input/output: 2.5 kV (50 Hz, 1 min.)
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- Degree of pollution: 2
- Overvoltage category: III
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371001
- eCl@ss 7.0: 27371001
- eCl@ss 8.0: 27371604
- ETIM 2.0: EC001504
- ETIM 3.0: EC001504
- ETIM 4.0: EC001504
- ETIM 5.0: EC001504
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121542
- UNSPSC 11: 39121542
- UNSPSC 12.01: 39121542
- UNSPSC 13.2: 39121542
