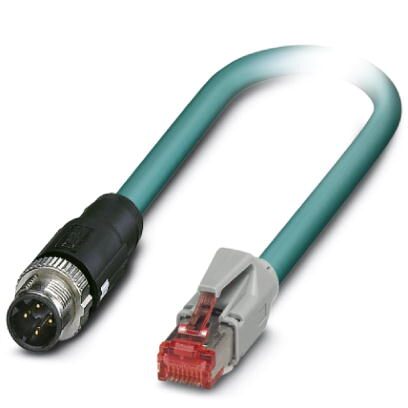

Phoenix Contact 1407363 Network Cable M12 to RJ45
The Phoenix Contact NBC-MSD/10,0-93E/R4AC SCO network cable provides a robust and reliable connection for industrial Ethernet applications. It combines a shielded M12 connector (IP67 rated) for secure field connections with a standard RJ45 connector (IP20 rated) for compatibility with existing network infrastructure. The PUR cable jacket offers excellent resistance to oil, abrasion, and chemicals, making it suitable for demanding environments. This cable is designed for applications such as industrial automation, process control, and building automation where reliable data communication is essential. Its robust construction and shielding ensure signal integrity and protection against interference.
Phoenix Contact 1407363 Network Cable M12 to RJ45 Specifications:
- Packing unit: 1 STK
- GTIN: 4046356774918
- Weight per Piece (excluding packing): 460.000 g
- Custom tariff number: 85444210
- Country of origin: Poland
- Length of cable: 10 m
- Degree of protection (M12 connector): IP67
- Degree of protection (RJ45 connector): IP20
- Ambient temperature (operation) (M12 connector): -25 °C ... 85 °C
- Rated current at 40°C: 1 A
- Rated voltage: 50 V
- Number of positions: 4
- Signal type/category: Ethernet CAT5 (100 Mbps)
- Standards/regulations (M12 connector): IEC 61076-2-101
- Head type (M12): Plug straight M12 SPEEDCON / IP67
- Coding (M12): D
- Material (M12 Contact): CuZn
- Material (M12 Contact surface): Ni/Au
- Material (M12 Contact carriers): PA
- Material (M12 Grip): TPU
- Material (M12 Screw connection): Zinc die-cast, nickel-plated
- Insulation resistance: ≥ 100 MΩ
- Insertion/withdrawal cycles (M12): ≥ 100
- Torque (M12): 0.4 Nm
- Head type (RJ45): Plug straight RJ45 / IP20
- No. of positions (RJ45): 4 (8)
- Material (RJ45 Contact): CuSn
- Material (RJ45 Contact surface): Ni/Au
- Material (RJ45 Contact carriers): PC
- Material (RJ45 Housing): PA
- Insertion/withdrawal cycles (RJ45): ≥ 750
- Cable type: PUR ETHERNET 2x2 FLEX
- Cable type abbreviation: 93E
- UL AWM style: 20963 (80°C/30 V)
- Conductor cross section: 2x 2x 0.14 mm²
- AWG signal line: 26
- Core diameter including insulation: 0.98 mm
- Shielding: Aluminum-coated foil, tinned copper braided shield
- Optical shield covering: 70 %
- External sheath color: water blue RAL 5021
- External sheath thickness: 1.2 mm
- External cable diameter: 6.4 mm ±0.2 mm
- Minimum bending radius (fixed): 4 x D
- Minimum bending radius (flexible): 8 x D
- Tensile strength: ≤ 80N
- Cable weight: 42 kg/km
- Material (cable insulation): Foamed PE
- Material (conductor): Bare Cu litz wires
- Standards/specifications (cable): Electrical requirements EN 50288-2-2
- Insulation resistance (cable): ≥ 500 MΩ*km
- Loop resistance (cable): ≤ 290 Ω (per km)
- Cable capacity: approx. 45 nF/km (at 1 kHz)
- Wave impedance: 100 Ω ±5 Ω (at 100 MHz)
- Signal runtime: 5.3 ns/m
- Coupling resistance: ≤ 100.00 mΩ/m (At 10 MHz)
- Nominal voltage (cable): ≤ 100 V (Peak value)
- Test voltage Core/Core: 700 V (50 Hz, 1 min.)
- Test voltage Core/Shield: 700 V (50 Hz, 1 min.)
- Flame resistance: according to IEC 60332-1-2
- Halogen-free: According to IEC 60754-1
- Resistance to oil: according to EN 60811-2-1
- Ambient temperature (operation) (cable): -20 °C ... 80 °C (flexible)
- China RoHS: Environmentally Friendly Use Period = 50
