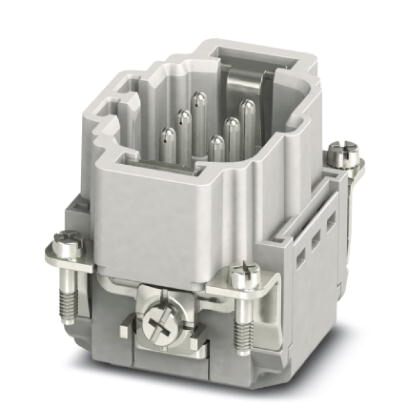

Phoenix Contact 1407728 Pin Insert
Heavycon B6 series pin insert with 6 transmission positions plus a protective earth (PE) connection, featuring a push-in connection for easy installation. It is suitable for applications requiring quick wiring, tool-free conductor connection, and reliable electrical contacts. Compatible with solid and stranded wires with ferrules, it operates within -40°C to 125°C. Made from copper alloy with Ag/Sn contact surface, rated at 500 V. It is used in industrial control and automation systems, delivering high efficiency and simplified assembly for rail vehicle and industrial environments.
Phoenix Contact 1407728 Pin Insert Specifications:
- Contact material: Copper alloy
- Contact surface: Ag/Sn (tarnish protection)
- Rated voltage: 500 V
- Temperature range: -40°C to 125°C
- Connection: Push-in, suitable for solid and stranded wires with ferrules
- Conductor cross section: 0.14 mm² to 2.5 mm²
- Connection cross section AWG: 26 to 14
- Protection class: IP54 or better in housing
- Standards: UL Recognized, CSA, DNV GL, EAC
- Compatible with rail vehicle fire protection requirements: R22, R23, R24 according to DIN EN 45545-2
- Nominal voltage: 600 V
- Ambient temperature: -40°C to 125°C
- Dimensions: Refer to detailed technical drawings
Buy the Phoenix Contact HC-BO6-I-PT-M U+2013 Reliable Pin Insert for Industrial Applications
Purchase the Phoenix Contact HC-BO6-I-PT-M pin insert online today to benefit from quick, tool-free wiring, robust design, and dependable electrical performance in industrial and automation environments. Its push-in connection allows for fast installation, reducing assembly time and minimizing errors. Suitable for applications requiring high safety standards, it features a copper alloy contact surface with tarnish protection, rated at 500 V, and can withstand temperatures from -40°C to 125°C. Ideal for rail vehicles and industrial control panels, ensuring high reliability and safety.
Buy Phoenix Contact HC-BO6-I-PT-M now and experience reliable fast wiring and high-quality connections for your industrial control systems.
