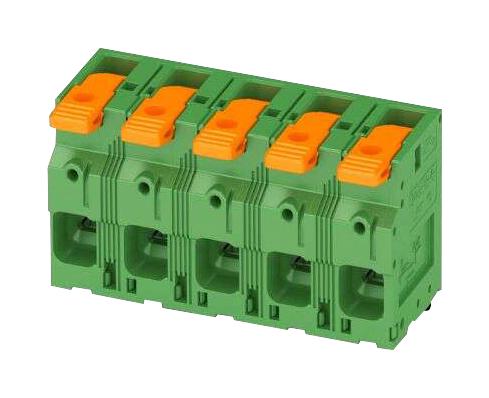

Phoenix Contact LPT162150ZB PCB Terminal Block
The PCB terminal block LPT 16/ 2-15,0-ZB is designed for secure, reliable electrical connections in industrial applications. It features lever push-in connection technology for quick and tool-free conductor insertion and release, supporting solid and flexible conductors from 0.75 mm² to 25 mm². With a rated voltage of 1000 V and a current capacity of 76 A, it is ideal for wave soldering mounting on printed circuit boards. The green housing is made of insulating PA material, compliant with RoHS and UL 94 V-0 flammability rating, ensuring safety and durability in demanding environments.
Phoenix Contact LPT162150ZB PCB Terminal Block Specifications:
- Housing color: green (6021)
- Material: PA (Polyamide), Tin-plated Cu alloy contact
- Rated voltage: 1000 V
- Rated current: 76 A
- Conductor cross section solid: 0.75 mm² – 16 mm²
- Flexible conductor cross section: 0.75 mm² – 25 mm²
- Push-in connection method, lever actuation, wave soldering mounting
- Dimensions: Length 32 mm, width not specified, height not specified
- Solder pin length: 3.6 mm
- Stripping length: 18 mm – 20 mm
- Insulation material group: I, CTI: 600
- Flammability rating: UL 94 V-0
- Glow wire flammability index: 850
- Glow wire ignition temp: 775°C
- Minimum clearance: 8 mm (inhomogeneous field), 5.5 mm (inhomogeneous field)
- Minimum creepage distance: 12.5 mm (III/3), 8 mm (III/2), 5.5 mm (II/2)
- Ambient temperature (storage/transport): -40°C to 70°C
- Ambient temperature (operation): -40°C to 105°C
- Packaging: 25 pieces per cardboard box
Buy the Buy Phoenix Contact PCB Terminal Block Part Number LPT162150ZB Online
Enhance your electrical systems with the Phoenix Contact PCB terminal block LPT 16/ 2-15,0-ZB. Featuring a lever push-in connection for quick, tool-free conductor insertion, it supports solid and flexible conductors from 0.75 mm² to 25 mm², rated for 1000 V and 76 A. Its durable green PA housing ensures safety, compliance, and long-term stability. Ideal for wave soldering, this versatile terminal block simplifies installation and maintenance, making it an excellent choice for industrial automation, control panels, and electrical distribution systems.
Get Phoenix Contact LPT162150ZB today—designed for reliable power and signal connections with tool-free lever operation and high current capacity.
Frequently Asked Questions
Where can I buy Phoenix Contact LPT162150ZB?
You can click on the BUY or RFQ button to purchase LPT162150ZB from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part LPT162150ZB?
You can download the LPT162150ZB datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of LPT162150ZB?
Phoenix Contact
