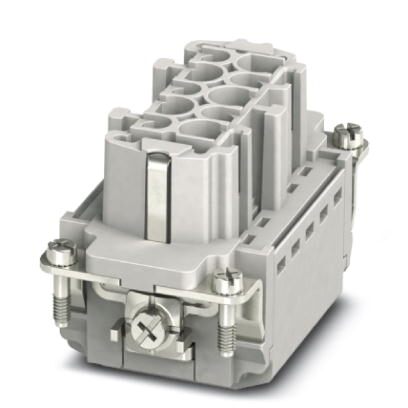

Phoenix Contact 1407729 Heavycon Socket Insert
Heavycon B10 series socket insert with 10 power contacts and protective earth (PE) connection, featuring a push-in connection system for easy and secure wiring.
Phoenix Contact 1407729 Heavycon Socket Insert Specifications:
- Conductor cross section 0.14 mm² ... 2.5 mm² (with ferrule)
- Connection cross section AWG 26 ... 14 (with ferrule)
- Rated voltage (III/3) 500 V
- Nominal voltage UN 600 V
- Ambient temperature (operation) -40 °C ... 125 °C
- Contact material Copper alloy
- Contact surface material Ag/Sn
- Assembly in housing with IP54 protection or better
- Compatibile with solid wires and stranded wires with ferrule
- Standards and regulations include UL Recognized, CSA, EAC, DNV GL
Buy the Phoenix Contact HC-B10-I-PT-F – Reliable Connectors for Industrial Applications
Purchase the Heavycon B10 series socket insert from Phoenix Contact online today to ensure secure and reliable electrical connections in your industrial automation systems. Its push-in connection technology allows quick installation, saving time and reducing errors. Designed for a wide range of conductor sizes up to 2.5 mm² and rated for 600 V, it offers excellent durability and compliance with industry standards. Order now to benefit from high-quality, easy-to-install connectors optimized for demanding industrial environments.
Buy Phoenix Contact HC-B10-I-PT-F now and experience unmatched reliability and performance for secure electrical connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 1407729?
You can click on the BUY or RFQ button to purchase 1407729 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1407729?
You can download the 1407729 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1407729?
Phoenix Contact
