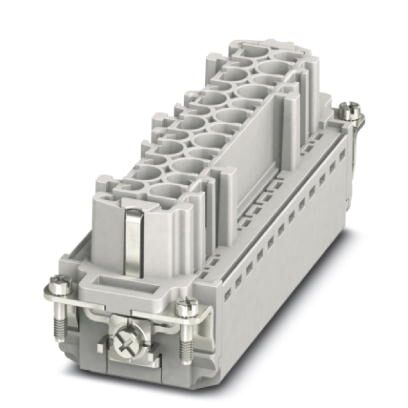

Phoenix Contact 1407737 Industrial Socket Insert
Heavycon socket insert from the B24 series featuring 24 main positions plus a protective earth (PE) connection. It includes position markings from 25 to 48 and utilizes push-in connection technology for secure and easy assembly.
Phoenix Contact 1407737 Industrial Socket Insert Specifications:
- Number of positions: 24+PE
- Rated voltage: 500 V
- Connection: Push-in
- Suitable for solid and stranded wires with ferrule
- Ambient temperature range: -40°C to 125°C
- Contact material: Copper alloy
- Contact surface: Ag/Sn (tarnish protection)
- Standards: UL Recognized, CSA, EAC, DNV GL
- Nominal voltage: 600 V
- Environmental compliance: China RoHS, unlimited EFUP
- Connector pin assignment: Standard for B24 series
- Dimensions: Typical mounting cutout for B24 contact inserts
- Fire protection: R22, R23, R24 according to DIN EN 45545-2
Buy the Phoenix Contact HC-B24-Il-PT-F-48 – Reliable Industrial Socket Insert for Heavycon B24 Series
Enhance your industrial connections with the Heavycon socket insert designed for the B24 series. Featuring 24+PE positions, push-in connection technology, and markings from 25 to 48, this highly reliable component ensures secure and quick wiring. Its copper alloy contacts with tarnish-resistant Ag/Sn surface provide durability and excellent electrical performance. Certified UL Recognized and compliant with global standards, this socket insert is perfect for demanding environments requiring safety, efficiency, and compliance, especially in rail and transportation applications. Purchase online today for fast, secure connectivity.
Buy Phoenix Contact HC-B24-Il-PT-F-48 now and experience unmatched reliability and performance in industrial connector applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 1407737?
You can click on the BUY or RFQ button to purchase 1407737 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1407737?
You can download the 1407737 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1407737?
Phoenix Contact
