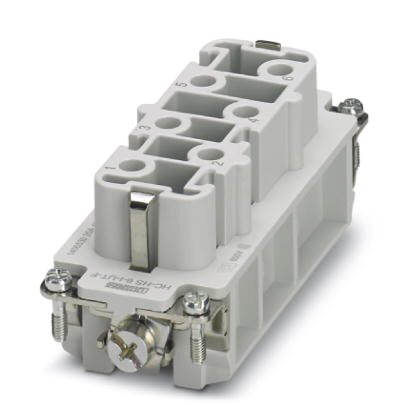

Phoenix Contact HCHS06IUTF 6-Position Female Insert
The PHOENIX CONTACT HC-HS06-I-UT-F is a robust female insert specifically engineered for use with HEAVYCON B16 and B32 housings. This insert provides a secure and reliable connection for power applications, featuring a screw connection mechanism for ease of installation and maintenance. It is designed to handle demanding industrial environments, with a rated voltage of 400/690V and a current carrying capacity of 41A. The insert is also compliant with fire protection standards for rail vehicles (DIN EN 45545-2), ensuring safety and reliability in critical applications. Its robust construction and high-quality materials contribute to a long service life and dependable performance.
Phoenix Contact HCHS06IUTF 6-Position Female Insert Specifications:
- Note: For HEAVYCON housing B16 and B32
- Connection method: Screw connection
- Tightening torque: 1.2 Nm
- Screwdriver blade: PH1
- Degree of pollution: 3
- Overvoltage category: III
- Number of positions: 6+PE
- Insertion/withdrawal cycles: ≥ 500
- Size: B16
- Connection in acc. with standard: IEC / EN
- Conductor cross section: 0.5 mm² ... 6 mm²
- Connection cross section AWG: 20 ... 10
- Stripping length of the individual wire: 10 mm
- Assembly instructions: Connectors may be operated only when there is no load/voltage.
- Ambient temperature (operation): -40 °C ... 125 °C
- Flammability rating according to UL 94: V0
- Contact material: Copper alloy
- Contact surface material: Ag
- Contact carrier material: PC
- Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
- Rated voltage for power contacts: 400/690 V
- Rated voltage (III/3) Conductor-PE: 400 V
- Rated voltage (III/3) Conductor-Conductor: 690 V
- Rated surge voltage: 6 kV
- Rated current: 41 A
- eCl@ss 5.1: 27143424
- eCl@ss 6.0: 27143424
- eCl@ss 8.0: 27440205
- eCl@ss 9.0: 27440205
- ETIM 4.0: EC000438
- ETIM 5.0: EC000438
- UL Recognized Nominal current IN: 35 A
- UL Recognized Nominal voltage UN: 600 V
