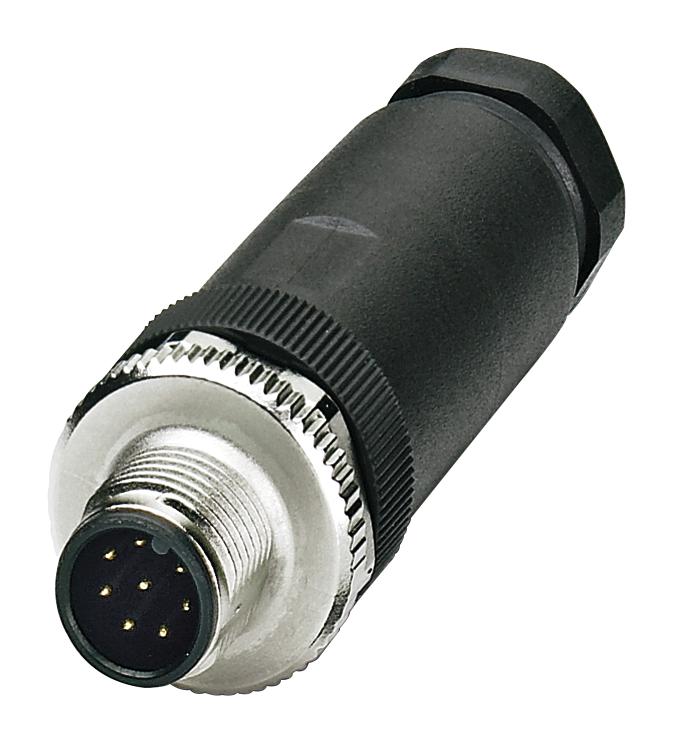

Phoenix Contact 1410666 M12 Connector 8 Position
The PHOENIX CONTACT SACC-M12MS-8CON-PG11-M is a robust and reliable M12 connector designed for use in demanding industrial environments. It offers a secure and efficient connection for power and data transmission. The connector's A-coding ensures compatibility with standard M12 systems, while the zinc die-cast nickel-plated knurl provides excellent protection against environmental factors. The Pg11 cable gland allows for secure and strain-relieved cable termination, making it suitable for applications requiring a high degree of protection and durability. It is ideal for use in automation technology, building automation, and other industrial applications where reliable connectivity is essential.
Phoenix Contact 1410666 M12 Connector 8 Position Specifications:
- External cable diameter: 8 mm ... 10 mm
- Stripping length of the sheath: 20 mm
- Stripping length of the individual wire: 5 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Degree of protection: IP67
- Rated current at 40°C: 2 A
- Rated voltage: 30 V
- Number of positions: 8
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Conductor cross section: 0.25 mm² ... 0.5 mm²
- Conductor cross section AWG: 24 ... 20
- Insertion/withdrawal cycles: ≥ 100
- Torque (M12 knurl): 0.4 Nm
- Torque (Screw terminal blocks): 0.2 Nm
- Torque (Pressure screw with sleeve housing): 0.8 Nm ... 1 Nm
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA
- Material of grip body: PA
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Packing unit: 1 STK
- GTIN: 4046356904650
- Weight per Piece (excluding packing): 40.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
